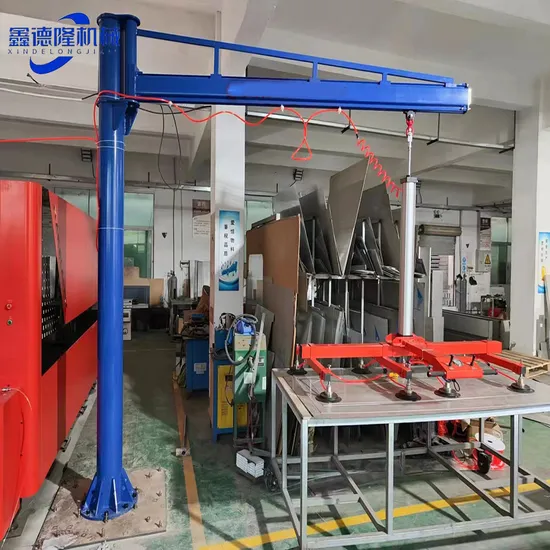

Marble/Stone/ Glass Vacuum Suction Cup Vacuum Lifter Vacuum Suction Lifting Equipment Loading Equipment Lifter Equipment with CE/SGS/ISO

Product Description

Specification (Support Customerized size )
*Working Area:700~3200mm
*Stroke Lifter:1000mm
*Rocker Arm Rotation:0~220°
*Max loading weight:800Kg
*Max Steel Plate Size:1500mm*3000mm
*Air Pressure:0.6-0.8MPa

Pneumatic Tpye Vacuum Lifter
Model	Carne	Rocker Arm	Strok	Capacity	Max Workpieces	Air Pressure	Suction Pad (pcs/dia)
XDL-L100-B3M	3300mm	3000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L100-B4M	3300mm	4000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B3M	3300mm	3000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B4M	3300mm	4000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B3M	3300mm	3000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B4M	3300mm	4000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
Pneumatic & Electric Tpye Vacuum Lifter
Model	Carne	Rocker Arm	Flip Angle	Capacity	Max Workpieces	Electric Hoist Capacity	Electric Power
XDL-L100-B3M	3300mm	3000mm	90degree	100kg	3000mm*1500mm	1000kg	220V/380V
XDL-L100-B4M	3300mm	4000mm	90degree	100kg	3000mm*1500mm	1000kg	220V/380V
XDL-L300-B3M	3300mm	3000mm	90degree	300kg	3000mm*1500mm	1000kg	220V/380V
XDL-L300-B4M	3300mm	4000mm	90degree	300kg	3000mm*1500mm	1000kg	220V/380V
XDL-L500-B3M	3300mm	3000mm	90degree	500kg	3000mm*1500mm	1000kg	220V/380V
XDL-L500-B4M	3300mm	4000mm	90degree	500kg	3000mm*1500mm	1000kg	220V/380V
XDL-L500-B3M	3300mm	3000mm	90degree	800kg	3000mm*1500mm	1000kg	220V/380V
XDL-L500-B4M	3300mm	4000mm	90degree	800kg	3000mm*1500mm	1000kg	220V/380V

*Real materials, safe and convenient, quality assurance, after-sales service, fast delivery, processing and customization
*High stability, simple operation, no need for electricity: using the pneumatic power-assisted principle, only need to control the button to complete the handling process of the workpiece

*High efficiency and short handling cycle: When loading materials, the operator can control the movement of the bow and arrow in space with less force, and can stop at any position.
*Air cutoff protection, safety guarantee: When the air source is suddenly interrupted, the plate will remain in the original position for a period of time without falling, making it easier for the operator to remove the plate.
*Quality assurance: The main components are produced by internationally renowned brands, and the quality is guaranteed by SGS and Certificate.
XINDELONG product line includes vacuum conveying technology such as glass vacuum lifting, standard lifting, electric lifting and other standard or custom equipment, widely used in sheet metal, stone, wood, plastics and other fields; Stamping peripheral auxiliary equipment, such as automatic feeding, transmission, etc., is widely used in laser, sheet metal and other related industries.
Our Machine Advantages :
*Professional and experienced Manufacturer
Manufacturer specializing in the production, development and production of laser cutting machines, plasma cutting machines and shearing machines for loading and unloading in China.
*Various styles, used in different working scenarios
1,The product can be loaded with aluminum plates, stainless steel plates, wooden boards, glass, marble tiles and other flat plates.
2,A variety of structures and suction cups are available for configuration.
*Stable structure, stable operation, quality assurance
1,Adopt all-steel structure and use imported vacuum pumps, valves and other parts, such as Airtac, SNS.
2,The company has passed SGS certification and the products have passed CE certification.
*Worry-free after sales service
Provide a 12-month warranty period, and provide online installation guidance or on-site teaching after sales
Our Machine details Show
*High-quality paint technology, multiple colors to choose from, red, blue, white, etc.
*Imported well-known brand accessories to ensure stable operation of the equipment, such as Cylinder AirTac, SNS etc.
*Support customized sizes to meet customers' different workshop needs

Factory Real Shots
The operation is simple and can be operated by one person; the lifting speed is fast and can save 6-8 people cost.
Fast operation
The vacuum energy is stored in the vacuum accumulator. Within one second, it can be transferred to the suction cup and sucked instantly; within two seconds, the vacuum in the suction cup can be returned to one atmospheric pressure and released instantly.
Safe to use
The vacuum for the spreader usually comes from an accumulator. In the event of a power outage to the vacuum pump, the energy reserve can maintain the load for several hours.
Delivery & Package
Quick Delivery
The factory has long-term safety stock, which can be shipped within 7 days.
Strong Package & Safety Transporation
It used strong plywood box to pack which it can be ensure machine protect well when transporation.
Inside spare parts will be packed by plastic film and then be belted.
About Us
Founded in 2021, Xindelong Machinery is the leading manufacturer of vacuum conveying technology, production auxiliary equipment and stamping peripheral equipment, and is committed to providing production solutions for industrial workshops.

Our product line includes vacuum conveying technology such as glass vacuum lifting, standard lifting, electric lifting and other standard or custom equipment, widely used in sheet metal, stone, wood, plastics and other fields; Stamping peripheral auxiliary equipment, such as automatic feeding, transmission, etc., is widely used in laser, sheet metal and other related industries.

Since the establishment of the company, through pragmatic, unremitting efforts; With high quality service and competitive price, the products are exported to the Middle East, Southeast Asia, Eastern Europe and other countries.

Xindelong machinery adhering to the quality of survival, integrity and development, service to create benefits of the business philosophy, adhere to the spirit of ingenuity as the basis of business, and strive to become China's excellent mechanical automation solution provider.

We help our clients find the right product for each work scenario and application, thereby helping you reduce your workload, making your job safe, easy, and saving time and money.

---
