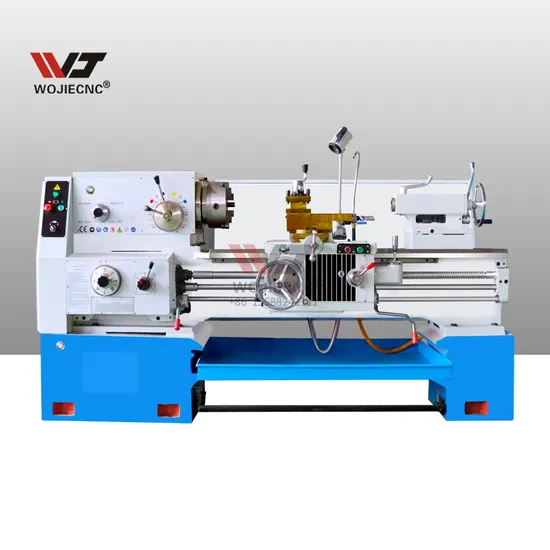

Multifunctional Horizontal Lathe Conventional Horizontal Lathe Manual Lathe Swing 400 Ca6140

Product Description

Product Description
Product Parameters

Type	CA6140 CA6240	CA6150 CA6250	CA6161 CA6261	CA6166 CA6266	CA6180 CA6280
Max. swing over bed	400mm	500mm	610mm	660mm	800mm
Max. swing over carriage	210mm	300mm	370mm	400mm	540mm
Max. swing in gap	630mm	720mm	830mm	880mm	1020mm
Max. effective length in gap	210mm
Max. length of workpiece	750/1000/1500/2000/2200/3000/4000mm
Width of bed	400mm
Section of turning tool	25×25 mm
Main spindle motor	7.5kw(10HP)
Spindle
Spindle speed	16--1400rpm(24step)
Spindle bore	52mm (80mm),(105mm)
Spindle taper	No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed
NO. of feed	(64 kinds)(for each)
Range of metric threads	(1-192mm) (44 kinds)
Range of inch threads	(1-24tpi) (21kinds)
Range of module threads	0.25-48 (module 39 kinds)
Range of diametral pitch threads	1-96DP (37 kinds)
Tailstock
Max. tailstock spindle travel	150mm
Tailstock spindle diameter	75mm
Taper of tailstock spindle centre hole	1-96DP (37 kinds)
Packing dimensions (L*W*H)
Overall dimensions for 750mm	2440×1140×1750mm
Overall dimensions for 1000mm	2700×1140×1750mm
Overall dimensions for 1500mm	3200×1140×1750mm
Overall dimensions for 2000mm	3700×1140×1750mm
Overall dimensions for 2200mm	4030×1140×1750mm
Overall dimensions for 3000mm	4800×1140×1750mm
Overall dimensions for 4000mm	5680×1140×1750mm
Weight (kg)
Overall dimensions for 750mm	2100	2170	2300	2400	2520
Overall dimensions for 1000mm	2200	2260	2380	2580	2720
Overall dimensions for 1500mm	2380	2450	2577	2830	3000
Overall dimensions for 2000mm	2750	2800	3000	3050	3300
Overall dimensions for 2200mm	2800	3000	3150	3400	3500
Overall dimensions for 3000mm	3300	3500	3600	4000	4220
Overall dimensions for 4000mm	3500	3800	3950	4600	4900

Detailed Photos
Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.2. What does your company mainly produce?A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.3. When is the delivery time?A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.4. What are your trade terms?A: FOB, CFR, CIF, DDP, DAP, FCA, etc.5. What is your minimum order quantity and warranty period?A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.6. What is the packaging of the machine?A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
