US$258.00-345.00
|
500 Pieces
(MOQ)
|
Basic Info.
Operating System
Windows 11 Home
RAM Capacity
DDR4 up to 64G
Wi-Fi Connectivity
Bluetooth 4.2
Product Name

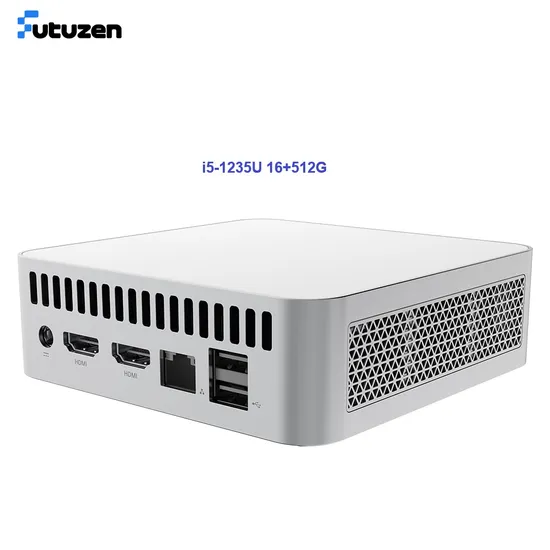

Windows OS Optional Plugged 6-Gen I3 I5 I7 Mini PC
USB
2X USB2.0 Type a, 2X USB 3.2 Gen1
HDMI Interface
1X HDMI 1.4 Type a 1X HDMI 2.0 Type a
DC Connector
1X DC Φ5.5mm Power Connector
CPU
Intel Alder Lake-U Series, I3-1215u/I5-1235u/I7-12
Memory Capacity
DDR4 up to 64G 3200 Mt/S, So-DIMM X2
SSD Capacity
1X SSD- M.2-2280 - up to 1tb (Supports Pcie 3.0 X4
Transport Package
Foam Carton Boxes
Specification
118*118*42.2mm
Production Capacity
200000PCS/Month
Product Description
Product Description
2024 Hot Sale Portable Sleek Mini PC, Minicomputer with Windows 11 for Everyday Use
Introducing the China Factory Futuzen Windows OS Optional Plugged 6-Gen I3 I5 I7 Mini PC. This elegant and potent mini desktop is ideal for both home and office environments. Boasting the modern Windows 11 Home OS, a robust Intel Core i7 processor, and an expansive DDR4 memory capacity of up to 64GB, it promises unparalleled performance. Equipped with versatile USB-C ports, lightning-fast SSD storage, and seamless Bluetooth 4.2 connectivity, this mini PC ensures that all your devices are easily accessible. Its compact and stylish black design makes it a perfect fit for any modern space. Elevate your computing experience with the Futuzen Mini PC now and enjoy an unmatched level of efficiency.
Detailed Photos
Product Parameters
| M501 PRODUCT SPECIFICATION |
| System Physical Standard Configuration: |
| Type | Details | Descriptions |
| Product Form | Product Form | Mini PC Box |
| Color | dark grey |
| Dimensions | 118*118*42.2mm |
| Weight | ≈465g |
| Housing | Plastic & Aluminum |
| System hardware configuration: |
| Type | Details | Descriptions |
| CPU | Type | Intel Alder Lake-U Series, i3-1215U/i5-1235U/i7-1255U,15W Intel Alder Lake-P Series, i3-1220P/i5-1240P/i7-1260P, 28W |
| Model | i3-1215U, 6-Cores, 8threads; Speed: 3.3GHz~4.4GHz i5-1235U, 10-Cores, 12threads; Speed: 3.3GHz~4.4GHz i7-1255U, 10-Cores, 12threads; Speed: 3.5GHz~4.7GHz i3-1220P, 10-Cores, 12threads; Speed: 3.3GHz~4.4GHz i5-1240P, 12-Cores, 16threads; Speed: 3.3GHz~4.4GHz i7-1260P, 12-Cores, 16threads; Speed: 3.4GHz~4.7GHz |
| GPU | Type | Intel® UHD Graphics |
| RAM | SO-DIMM*2 | DDR4 up to 64G 3200 MT/s, SO-DIMM x2 |
| ROM | eMMC | NA |
| SSD | M.2 | 1x SSD- M.2-2280 - up to 1TB (supports PCIe 3.0 x4 & SATA3.0 modes) |
| HDD | SATA | NA |
| Security | Yes | DTPM/fTPM (Optional) |
| Network Connections: |
| Type | Details | Descriptions |
| WIFI | WIFI module | M.2 2230 Intel® Wireless-AC 3165 1x1 PCIe/USB + Bluetooth 4.2 M.2 2230 Intel® Wireless-AC 9461 1x1 CNVio + Bluetooth 5.1 M.2 2230 Intel® Wireless- AC9560 2x2 CNVio + Bluetooth 5.1 M.2 2230 Intel® Wireless- AX201 2x2 CNVio + Bluetooth 5.2 |
| Ethernet Network | Type | 10/100/1000Mbps |
| Interface Configuration: |
| Type | Details | Descriptions |
| USB interface | Data transfer supportive | 2x USB2.0 Type A, 2x USB 3.2 Gen1 |
| Audio jack | Audio input | 1xHeadphone/microphone combo |
| DC connector | Power | 1x DC Φ5.5mm power connector |
| HDMI interface | Video output | 1x HDMI 1.4 Type A 1x HDMI 2.0 Type A |
| Expand storage | Micro SD | NA |
| Network interface | Ethernet | 1x RJ45 |
| VGA interface | Video output | NA |
| Type-C interface | USB | 1x Full Type-C(USB3.2 Gen1+DP+PD) 1x Type-C USB 2.0 |
| Power | Power button | LED lits white when power on, and stay solid white |
| Keyboard | Input device | USB,BT Expuntable Wired / Wireless Supportive |
| Mouse | Input device | USB,BT Expuntable Wired / Wireless Supportive |
| Necessary Accessories: |
| Type | Details | Descriptions |
| Power adapter | Standard Configuration | DC φ 5.5mm 19V/3.42A 65W DC φ 5.5mm 19V/4.74A 90W(According to the CPU model to choice) |
| Software Configuration: |
| Type | Details | Descriptions |
| Operating System | Operating system version | Windows 11 |
| Features |
| Type | Descriptions |
| Accessories | VESA | support(100*100) |
Certifications
Packaging & Shipping
Company Profile
Our Partners
FAQ
1.What can you buy from us?Computer products peripheral products wholesale:All in One PC/ Desktop PC/ Mini PC / Monitor / Laptop/Tablet/Projectors/Server/accessories.2.Are you a trader or a factory?We are a factory with 10 years of experience in the production of all-in-one computers, laptops, monitors,mini-pc,projectors,
Server and so on.3.Can you put my brand name (logo) on these products?Yes. We can support OEM/ODM service.4.What is the Minimum Order Quantity(MOQ)?1 piece sample for your test.
5. How about the Warranty?
Some model is 1 year warranty. Some models is 2 years warranty.
6. Where is your factory located?
Two factories: one is in Shenzhen,Guangdong Province; the other is in Zhuzhou,Hunan province. Welcome you visit us!
>>
