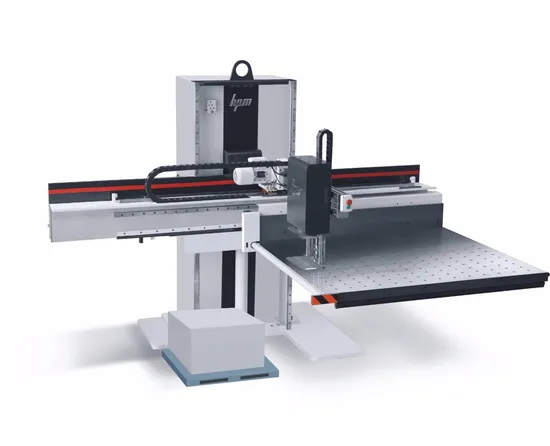

Hot Sale Paper Loader Aligning Stacker Machine Fully Automated Paper Loading Machine

Product Description

QZ1450F /QZ1650F
Machine Performance
1.The paper unloader can be used in conjunction with program-controlled paper cutters, lifters, paper breakers and air cushion workstations to form a cutting line, which can automatically complete the cutting, feeding and unloading, sorting, handling and stacking of paper, with many features such as high production efficiency, low operating labour intensity, short auxiliary production time and reduced labour costs.
2.It greatly facilitates the feeding and unloading of paper stacks during the cutting process. The high quality stacking function provides the necessary prerequisites for future printing or folding processes, saving time and effort. The fully automatic paper size adjustment function guarantees simple operation.
Configuration Listing

No.	Name	Brand, specification & model
1	Sensor	FOTEK
2	Air Switch	TE
3	AC Contactor	TE
4	Button	TE or Eton
5	Platform servo motors	Platform Walking(Inovance)
6	Servo Driver	Walking Control(Inovance)
7	Servo motor	Pick-up part(Inovance)
8	Photoelectric Sensor	Detecting the height of paper stacks(LEUZE)
9	Switch Power	TE
10	Power Switch	CANSEN
11	Miniature Relay	TE
12	Combination valves	Hydraulic Part(WAISN)
13	Air cylinder	Catch paper part(AirTAC)
15	Linear Guider	High accurate linear guides
16	Display screens	MCGS

Technical Parameter

	XZ1450F-2	XZ1650F-2
Plate Size (W×L)mm	1050×1800	1300×2040
Max.Paper size (W×L)mm	1010×1450	1270×1650
Min.Paper size (W×L)mm	300×400	300×400
Max.Layer height(with plate)mm	1600	1600
Max.Layer height mm	165	165
Min. table height from the floor mm	150	150
Max.Layer weight Kg	400	450
Pressure setting MPa	0.35-0.4	0.35-0.4
Air Demand MPa	0.6	0.6
Air supply consumption L /min	3	3
Rated voltage V	380/220	380/220
Power supply mode	Three-phase five-wire system	Three-phase five-wire system
Gross Power Kw	5.8	5.8
Min.grams of paper g	50	50
Unloader time S	25-35	25-35
Net Weight KG	2300	2400
Gross Weight KG	2450	2550
Machine Size (WXLXH)mm	3920×2100×2060	4330×2350×2060
Packing Size (WXLXH)mm	4100×2380×2210	4300×2380×2210
Hydraulic drive for lifting and lowering, smooth movement, low noise, long life and low maintenance costs
The recommended power of the air compressor alone is 2.2Kw
