Automatic Toilet Paper Roll Rewinding Machine at Factory Price

Product Description

FAutomatic toilet paper roll rewinding machine at factory price Product Description An automatic toilet paper rewinding machine is for toilet paper roll processing. The machine has a core feeding unit and can do both with and without the core. Raw material from the jumbo roll after full embossing or edge embossing, then perforation, end cutting, and a spray of the tail glue become a log. Then it can work with a cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through the touch screen, the whole process is automatic, easy to operate, lowers the man cost. And Our machine can be specially made according to client's requirements.
The production process is Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Video Link:https://youtu.be/6yfSJAkL_Pk?si=v0z1Yoei5G2tokSq

Feature And Functions 1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying, and sealing synchronously at one time. Leaving a 10-18mm tail, easy
to rewind again, reducing shortcut waste and saving costs.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set, and parametric fault shows on the touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Detailed Photos Independent Motor
To control jumbo roll stands, each jumbo roll stand can be adjusted independently.
Perforating Device
perforating distance: 90-150mm(4 anvil Blades)
180-300mm(2 anvil Blades)
Steel to Rubber Embossing Roll
embossing depth is about 0.7-1mm according to the embossing pattern you chose, other depths can be customized.
Glue Lamination System
Optional for toilet paper, kitchen towel, and maxi roll. With this system,
the finished products are more polished, and the water absorption is stronger. Non-Stop Accumulator For
Glue Lamination System
Finished Product

Product Parameters

Jumbo roll max width	1750mm (Other size can be specified)
Jumbo roll diameter	1200mm
Jumbo roll inner core diameter	3inches(76.2mm)
Finish product diameter	90-280mm
Finish product Inner core diameter	38-76mm
Perforation distance	120-150mm
Production speed	180-230m/min
PLC	INVT
Pneumatic system	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Unwinding transmission	Variable stepless speed regulation
Rewinding Unit	With core or coreless

Recommend Production Lines

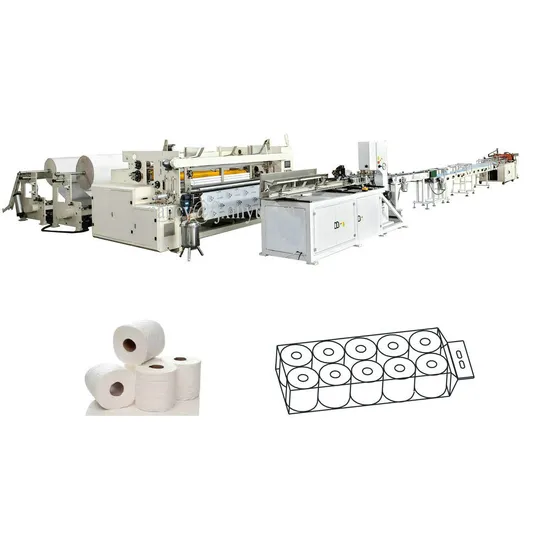

XY-TQ-A-G Semi-Automatic Glue Laminated Toilet Paper Machine Production Line
Video Link: https://youtu.be/HaQO52gcpjE
There are four machines in this production line.
1) XY-TQ-B Full automatic glue laminated toilet paper-making machine
High speed:200 meters/minute
Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-203 Log Roll Accumulator
3) XY-AI-400 Automatic toilet paper band saw cutting machine
Capacity: 80-120 rolls/min
Cutting diameter:90-140mm
4) XY-AI-398A Semi-automatic multi rolls packing machine with conveyor belt
Capacity: 8-10 bags/min
XY-TQ-A-D Fully Automatic Toilet Paper-Making Machine Production Line
Video Link:https://youtu.be/UtmdIr_vk1M
There are three machines in this production line.
1) XY-TQ-B Full automatic glue lamination toilet paper-making machine
High speed:200 meters/minute
2) Log Roll Accumulator
3)XY-AI-280 Automatic toilet paper double channels log saw cutting machine
Capacity: 160-200 rolls/min Cutting diameter:90-140mm
4)XY-AI-398D Full automatic toilet paper multi rolls packing machine
Capacity: 18 bags/min
Packaging & Shipping
After Sales Service Why choose machines from Fujian Xinyun Machinery Development Co., Ltd?
1.Good quality of machine with reasonable price.
2. Good service: Any question from a customer will be replied to within 24 hours.
For all the machines we sell, we will offer a one-year guarantee for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if needed).
The buyer shall pay for their round-trip air tickets from the China factory to the buyer's factory, the charge of visa, food, transportation, and accommodation in the buyer's city.
Company Profile Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to send us An Inquiry, we will reply to you everything as soon as possible,
thank you.

---
