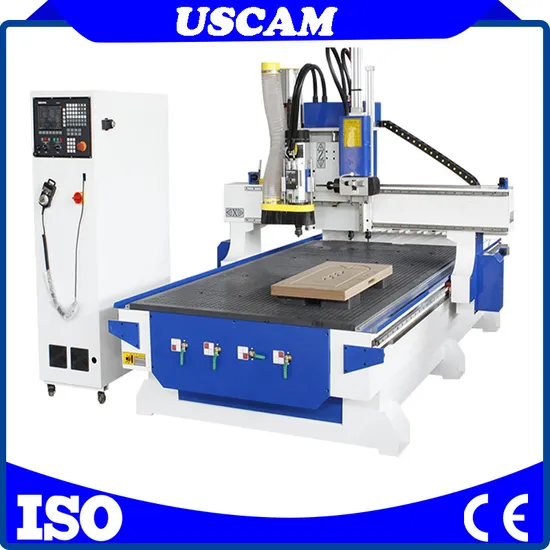

CNC Woodworking Atc CNC Router Cutting Engraving Machine with Auto Tool Change

Product Description

Tool Change ATC CNC Router Machine

1. Spindle	Italy HSD or China HQD Air Cooling Spindle Top brand of the world. Spindle speed: 0-24000RPM
2. Inverter	Delta Inverter Ioutput 150% of rated torque at zero speed, can have "point to point" and relative distance control functions for position
3. Motor& Drive	Servo Motor and Driver Servo motor driver can run with lower heating, smoother movement and have better performances
4.Control system	Syntec control system with handle wheel
5.Transmission	Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN Linear Rail HG series linear guideway can achieve a long life with highly accurate and smooth linear motion.
6.Working table	Vacuum Table vacuum table with gvacuum hold-down enables you to clampthe workpiece in place.

Parts of cnc router machine
1. Working area is 1300*2500/1500x3000/2000x3000mm
2. Heavy duty body.
3. ATC Italy HSD or China HQD air cooling spindle.
4. Automatic Tool Changer Spindle with 10-12 pieces tools magazine.
5. Syntec controlling system.
6. Japan Yaskawa 850W servo motor and drivers.
7.11KW Delta inverter from Taiwan.
8. Taiwan HIWIN 30 square rails.
9. Japan Omron limited switch.
10. Strong suction Non-oil vacuum pump 5.5KW.
11. Tool sensor.
12.10pcs tool holder.
13. Auto oil-lubrication.
Technology Parmeter

Description	Parameter :USM1325-ATC
X,Y,Z working area	1300x2500x200mm
X,Y,Z Traveling positioning accuracy	±0.01
X,Y,Z Repositioning positioning accuracy	±0.01mm
Lathe bed frame	Steel square tubes,Lathe bed steel pipe thickness 8mm
X,Y Structure	Rack drive and Taiwan HIWIN guide
Z Structure	Taiwan TBI Ball screw and Taiwan HIWIN guide
Drive motors	Japan Yaskawa Servo motors
Table surface	vacuum table and vacuum pump
Max power comsumption	(without spindle)2.0KW
Max rapid travel rate	100000mm/min
Max working speed	80000mm/min
Spindle power (Linear or Disc)	Automatic tool change spindle Italy HSD 9kw
Spindle speed	0-24000RPM
Spindle inverter	Taiwan Delta inverter
Working voltage	AC380V/50/60Hz,3PH
Command language	G Code
Operatiing system	Taiwan Syntec system
Collet	ISO30 or HSK F63 (3.175/4/6/12.7mm. Optional )
X,Y Resolution	<0.02mm
Running environment temperature	0-45 centigrade
Relative humidity	30%-75%
G.W.	Approx. 3500kg
Delivery time and payment	7-15 working days days after get 30% payment by T/T

Sample of cnc router cutting engraving machine
Packing and shipping 1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-15 days after received your payment
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Welcome To Our Factory
USCAM Quality Control
1. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products.
2. Every Machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
3. 24 months guarantee of the whole machine.
4. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
5. Lifetime maintenance free of charge.
6. We will provide the consumable parts at an agency price when you need replacement.
7. Machine has been adjusted before delivery.
8. Our staff can be sent to your company to install or adjust if necessary.

---
