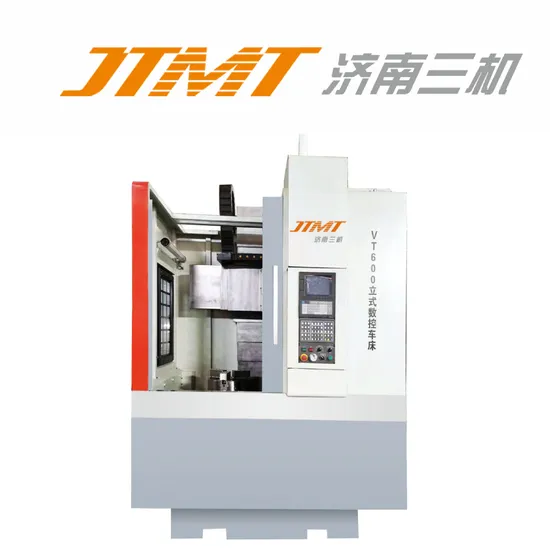

Jtmt Vt600 Vertical CNC Lathe Machining Center with High Speed High Precision Milling Machine Horizontal Machining Lathe

US$3,000.00-38,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VT600
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Gray Cast Iron
Rigid Linear
Guide Rail
High Rigidity
Semi-Finishing
Finishing
Ball Screw
Special Bearing
Hydraulic Turret
Hydraulic Chuck
Transport Package
Box Cargo
Specification
Weight: 5800kg
Trademark
JTMT
Origin
Shandong
Production Capacity
5000PCS/Year

Product Description

Product Description

We have 50 years of professional experience in the production of numerical control machine tools. The industrial park covers an area of 66,000 square meters and the construction area is 15,000 square meters. For professional services, please consult customer service.
Product Characteristics
1.The column, base and sliding base are made of high grade gray cast iron, and the X/Z axis is
made of Taiwan high rigid linear guide rail, which ensures the high precision and high rigidity
of the machine tool for long-term use.
2.The machine tool spindle adopts a complete set of unit spindle, equipped with a special
servo spindle motor, suitable for strong cutting; It is also suitable for semi-finishing and finishing
of parts.
3.The X/Z axis feed is automatically controlled by servo
motor; Both directions are equipped with protective devices, and the Z-axis direction is equipped
with a counterweight structure, which is reliable in structure and low in failure rate, greatly extending the service life of the lead screw.
4.The X/Z axis adopts Taiwan precision ball screw, and the support bearings at both ends adopt imported or domestic precision ball screw special bearings, which greatly improves and ensures the machining accuracy of the machine tool for parts.
5.The machine tool adopts electric lubricating oil pump to conduct centralized lubrication for the machine tool, ensure the lubrication of each guide rail pair and ball screw pair, and extend the service life of each motion pair; The tool holder of the machine tool adopts high-precision eight-position hydraulic turret and hydraulic chuck, with stable working accuracy.
6.Main configuration of CNC system: FANUC, GSK, KND, Siemens.
Product Parameters

Item Unit VT600
Turning diameter on the bed mm Φ600
Maximum machining diameter mm Φ500
Maximum machining length mm 600
Diameter of medium solid chuck inch 15"
Spindle speed range r/min 100-1500
Spindle head mm A2-8
Main motor output power Kw 15kw
X/Z axis feed motor torque N.m 15/18
Rapid feed rate (X/Z) r/min 12/16
Horizontal movement distance of tool holder mm 600
Vertical movement distance of tool holder mm 650
Turret form 125-8T
Outer circle tool size mm 32x32
Boring bar diameter mm Φ40
Machine size (length × wide × High) mm 2080×2000×3100
weight kg 5800

l Certifications

FAQ

Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification?
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide
customers better quality, better price,and better service".
