Product Details
Product Description
Product Description

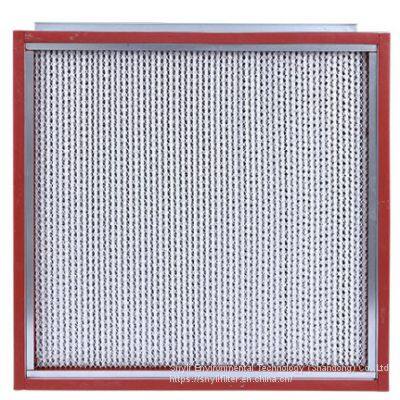

250℃ high temp Medium filter adopts mini pleat structure with glass fiber filter paper as separator. Compared with
the conventional aluminum foil separator high temperature filter, it has the advantages of light weight, large filter
area, low resistance, low operation cost, and is used for painting, coating, coating and other industries of high
temperature drying process filtration.
Advantages
Light weight
large filtration area
Low resistance
Low operating cost
Characteristics
Frame: Galvanized, Aluminum
Media: Micro glass fiber
Efficiency:
M6 (EN 779), 60-80% / MERV 11-12 (ASHRAE 52.2)
F8 (EN 779), 90-95% / MERV 14 (ASHRAE 52.2)
Separator: Glass fiber
Sealant: Glass fiber rope
Max operating Temperature: 250 °C
Max Peak Temp: 300 °C
Applications
Specially designed for use in automotive drying tunnel installations.
Secondary filter for heat recovery and air treatment systems
>>
