Product Description
Product Description
thickness measurement description

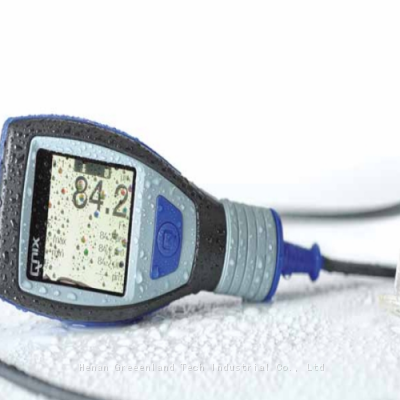

Whether in industrial coating or job coating, in heavy corrosion protection or in vehicle evaluation by automotive experts and retailers: The QNix® 5500 coating thickness measurement supports you optimally in checking your coatings quickly without extensive set up of the gauge - switch it on, place on surface, and read the measurement.
The bright, 2” large colour LCD with automatic flip display makes it easier to read the values in any position – even in dim conditions like in dark areas inside tanks or bridges or when working in bright sunlight. The gauge displays all necessary statistical information of your current measurement sequence like mean value, maximum and minimum value and standard deviation.
The large foot and low centre of gravity ensures correct placement and avoids incorrect measurements. To measure small or angled areas simply use the probe cable and transform the QNix® 5500 thickness gauge into a cable device within a few seconds. The angled cable connection facilitates working even in small spaces.
The one button operation allows you fast zero adjustment on your base metal or on the supplied zero plates.
For every application, there is the right probe, which is precise and true over the entire measuring range varying from 1,25 mm and 3 mm up to 5 mm, available as Fe-, NFe- or dual probes.
thickness measurement advantage
All exchangeable standard probes of the QNix® 5500 can also be used in the new QNix® 9500. QNix® thus ensures the flexibility and compatibility of the new probes which are interchangeable between both models.
The QNix® probes have been completely redeveloped: The standard probes are small and extremely robust. FE-, NFe- and dual probes with different measuring ranges are available.
The coating thickness gauge QNix® 5500 is available with a fixed integrated probe and a modular, exchangeable probe.
QNix® 5500 changeable probes
• Stainless steel probes with a protective membrane IP65 dust and splash water protection
• Rough measuring head with polished ruby
• Chemical resistant material for cleaning with solvents (acetone, nitro dilution)
• Probe adaptor cable made of drag chain compatible PUR
thickness measurement specification
>>
