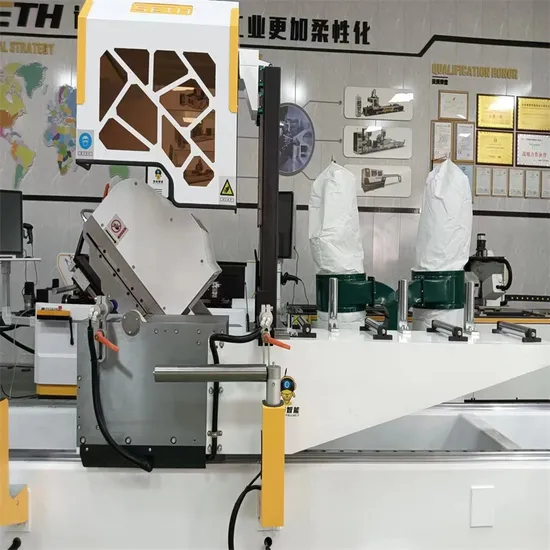

Window Door Making Machine Aluminum Cutting Machine with Dual Head CNC at Any Angle

Product Description

Product Description

CNC Arbitrary angle double head precision cutting saw for aluminum profile
(1). Mainly used for cutting industrial aluminum profiles, aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.
(2) The directly connected blades adopt lever-swing cutting type.The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting.
(3) The imported high precision blade makes the cutting surface more smooth.
(4)The cutting angle is auto adjustable through the imported servo motor
between 45° to 157.5° Imported control system can accomplish cutting
optimization.
(5)Several profile processing dimensions can be input in one time and
make continuous cutting.
(7)The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
(8)The airproof device under the worktable has wonderful crumbsclearing effect.
(9)The following saw cover keeps it working in the clean environment.
The profile is clamped by two cylinders in every head, and kept the
cutting security.

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	410~4300mm
Cutting width	Max. 210mm
Cutting height	Max. 320mm
Max. cutting slope	45°210×280mm 90°210×320mm
Cutting angle	90°, 45°
Feeding speed	0~3m/min
Saw blade specification	Ф600×4.4×Ф30 Z=144 (saw blade 500/550/600mm)
Overall dimension	5800×1700×1900mm
Weight	2000kg

Detailed Photos
