20L Heater and Hotplate Thermostatic Digital Magnetic Stirrer Magnetic Induction Stirrer

US$390.00-440.00 1 Piece (MOQ)

Basic Info.

Model NO.
MS-H-PROt magnetic stirrer 20L
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP, CCC, API, CE, ISO
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Diving
Warranty
One-Year
Working
High Speed Mixer
Customized
Customized
Structure
Desktop
Material
Stainless Steel
Type
Hot Plate
Work Plate Dimension
135mm(5 Inch)
Work Plate Material
Stainless Steel Cover with Ceramic
Motor Type
Brushless DC Motor
Motor Rating Input
18W
Motor Rating Output
10W
Power
550W
Heating Output
500W
Max. Stirring Quantity[H2O]
20L
Stirring Positions
1
Max. Magnetic Bar[Length]
80mm
Speed Range
100-1500rpm
Heating Temperature Range
Room Temp.-340degree
Over Temperature Protection
420degree
External Temperature Sensor
PT1000
Mixer Type
Agitator
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Hard Carton Packing
Specification
20L
Trademark
TOPTION
Origin
China
HS Code
8479820090
Production Capacity
30000PCS/Year

Product Description

Product Description

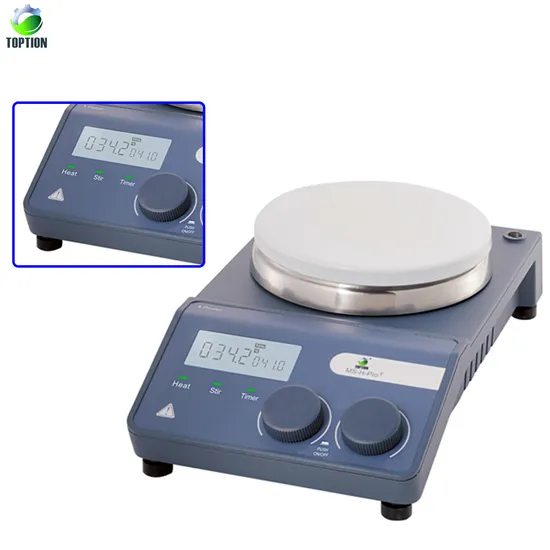

20L Magnetic Stirrer With Heating 340 Degree Centigrade, Timer Function
TOPTION MS-H-PROt LCD digital magnetic hotplate stirrer has timer function and max heating temp.reach 340 degree centigrade, this type lab magnetic stirrer is include all leading safety standards and features for superior easy of use and cost-effective.
Product Parameters
Specifications MS-H-PRO+ MS-H-PROT MS-HS
Work plate dimensions Φ135mm (5 inch) Φ135mm (5 inch) Φ135mm (5 inch)
Work plate material Stainless steel cover with ceramic
Motor type Brushless DC motor
Motor rating input 18W
Motor rating output 10W
Power 550W 550W 530W
Heating output 500W 500W 500W
Voltage 100-120/200-240V 50/60Hz 100-120/200-240V 50/60Hz 100-120/200-240V 50/60Hz
Stirring positions 1 1 1
Max. Stirring quantity [H2O] 20L 20L 20L
Max. Magnetic bar [length] 80mm 80mm 80mm
Speed range 100-1500 rpm resolution ±1 rpm 100-1500 rpm resolution ±1 rpm 100-1500 rpm resolution ±1 rpm
Speed display LCD LCD Scale
Temperature display LCD LCD Scale
Heating temp. range Romm temp. -340ºC, increment 1ºC Romm temp. -340ºC, increment 1ºC Romm temp. -340ºC
Temp. Control accuracy ±1ºC(<100ºC), ±1% (>100ºC). ±1ºC(<100ºC), ±1% (>100ºC). \
Over temp. protection 360ºC 360ºC 350ºC
Temp. Display accuracy ±0.1ºC ±0.1ºC ±0.5ºC
External temp. sensor PT1000 (accuracy ±0.2) PT1000 (accuracy ±0.2) \
"Hot" warning 50ºC 50ºC \
Timer function \ 1min to 99h 59min \
Data connector RS232 RS232 \
Protection class IP42 IP42 IP42
Dimension [W*D*H] 160*280*85mm 160*280*85mm 160*280*85mm
Weight 2.8kg 2.8kg 2.8kg
Permissible ambient temp. And humidity 5-40ºC 80% 5-40ºC 80% 5-40ºC 80%
Detailed Photos
• Brushless DC motor is maintenance free and explosion-proof
• Digital temperature control with max. temperature at 340°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 20L
• Safety circuits provide overheating protection
• The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
• Wide range timer function from 1min to 99h59min(MS-H-ProT only)
• High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Remote function provides PC control and data transmission
• A wide variety of accessories are available
