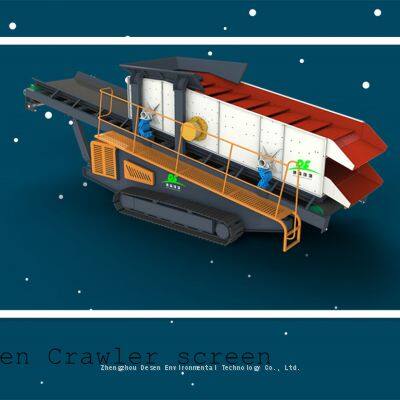

Mobile screen plant
Desen’s mobile screen plant is widely used in soil remediation, mineral processing, coal, chemical, building materials, solid waste treatment, waste materials and other fields for screening and grading.
Based on the market requirements, Desen deisgned the mobile screen plant with our accumulated experiences for over 30 years.
Due to the integrated design, Desen’s mobile screen is efficient and flexible. It classifies the materials to three levels according to feed size. The screen is made of high manganese spring steel with high wear resistance and good elasticity. The screen aperture can be flexibly adjusted according to processing requirements.
Characteristic
*Integrated design, small footprint
*High screening efficiency, low energy consumption
*Large processing capacity, low working noise
*Convinient tranport and transfer, simple operation
Technical parameters
Capacity TPH
| 30-150
|
Total Power KW
| 28.5
|
Screen layers No.
| multi-layers (adjustable screen holes)
|
Total weight KG
| 15200
|
Axles No.
| Multi-axles
|
Control system
| Independent electrical control
|
Angle of inclination
| 18°
|
Length*Width*Height ( for transport )
| 8400mm*3100mm*3400 mm
|
Traction mode
| By common tractor
|
>>
