Drum Wood Chipper HX1300DYB Fully Hydraulic Mobile with Engine Type

Product Description

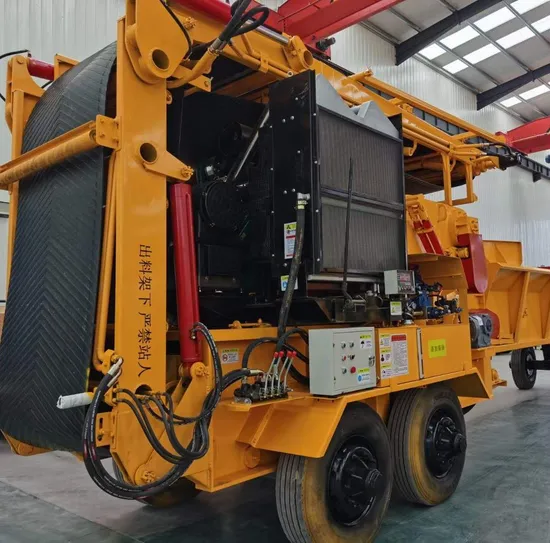

Product Photo
Prodcut Drawing
Product Description
HX drum wood chipper is a dedicated equipment for biomass power plant for fuel reserve and MDF plant. Raw materials mainly consist of all kinds of trees, undersized log, timber felling residues (such as branch, twig, etc.), wood pallet, wood building template, and wood processing residues ( such as slab, batten, log core, building templates, etc.) and non-wood raw materials (such as waste of flax, reed, bamboo ,maize straw, cotton stalk, etc.).
Based on our company's decades of experience in manufacturing of drum wood chipper, the machine is elaborately designed according to raw materials characteristics and end users' requirement for material particle size, and has the feature of wide raw material adaptability, high production capacity, reasonable structure, easy operation, high safety and reliability, easy maintenance etc. Besides, we has got many patents for core components. It's the most ideal biomass crusher worldwide at present.
Advanced features
1) Rotor rotation speed adjustable. According to the customer's specific requirements, the machine can be modified, such as adjusting the corresponding parts to change the rotation speed of the rotor, to meet the different requirements of customers on discharging granularity and production capacity.
2) Forced auto feeding system. Start the oil pump, oil cylinder piston extend-retract, swing device rises or falls, then the upper feed roller adapt to the nature of feedstock automatically. This function enables the machine can adapt to wide range raw material and the feed process is more smooth. We got the patent for it.
3) Easy maintenance. Thanks to the hydraulic system, it is easy and convenient to open the machine cover to check or replace the cutter, screen mesh and so on.
4) Dual control. One is fixed electrical cabinet and the other is remote control, that makes the operation more safe and convenient.
5) Overload protection. The circuit has an overload protection device, which automatically cuts off the circuit when overloaded.
6) Interlocking control of feed system and avoid feeding plugging. During normal operation, feeding roller and conveyor work simultaneously. Once there is a plugging, feed system will stop feeding to protect the machine.
7) Pulley secured by inner hole locking device. Easy to assemble and disassemble. No the traditional violent assemble and disassemble. Protect the main motor. This makes easy to maintain the main and prolong the life span of the main motor.
Product Parameters

Model	HX1300DYB
Rotor diameter	800 mm
Main shaft diameter	155 mm
Main shaft material	45# quenched and tempered steel
Feed roller quantity	2 pieces
Blade quantity	8 pieces
Blade material	H12 alloy
Dead knife assemble material	cast steel of integrated processed
Input size	1300-600 mm
Max wood diameter	350 mm
Screen mesh size	60 x 60 mm
Output particle size	15-20 mm
Production capacity	10-15 TPH
Main power	Diesel engine 480hp
Feed	Supply power by hydraulic motor.
Hydraulic pump
Discharge
Feed conveyor	6m belt type or 4m steel chain type
Discharge conveyor	7.5m foldable conveyor
Mobile device	6 tyres + towing shaft
Dimension	11.3 x 2.8 x 4m
Weight	17 t
Container delivery	1x40FR

Blade rotor
Blade
Main Shaft
The material of the main shaft is 40Cr heat-treated and quenched, and the machining process is independently completed by our company's machining center to ensure product quality and machine stability.
The rotor roller is fixed with the main shaft locking sleeve, the blade seat is made of 45 steel, and the blade clamp is made of cast steel, which is sturdy and durable.
Rotor balance test
All rotor will go through strict Dynamic balance test to guarantee running stability after finish manufacturing and assembling.
Dead knife assemble is cast steel of integrated processed
Screen
Core components processed as a complete part.
Machine frame components are processed by laser cutting machine.
Delivery
Working job site photo
Output wood chips
Company Profile
SHANDONG HONGXIN MACHINERY CO.,LTD, established in 2005, is a professional manufacturer engaged in the research, development, production, sale and service of log debarker, wood chipper, wood crusher, hammer mill and wood pellet mill. We are located in Zouping, Binzhou with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. In addition, we have obtained ISO 9001 and CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Russia, Thailand, Malaysia, Vietnam, Singapore, India, Mexico, Uganda, France, Hungary, Cyprus, Sri Lanka etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
More about our company
We have established a complete quality control system, which operates in strict compliance with ISO9001 and other management systems for each step of our production process, from manufacturing and inspection, all the way to delivery and after-sale services. We are the designated manufacturer for the top 3 largest biomass power plants in China, proving our dedication to both quality and commitment to environmental conservation. Not only do we supply qualified, CE approved machines, but we also provide reliable, quick and friendly after-sales service and technology support. We can design and manufacture customized machines to meet all customer requirements. We manufacture independently the key machines of pellet production line, can design complete production line according to customers' needs. With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services which meet a wide array of needs, and delivery time.
Certfication
FAQ
You May Have Following Questions:
Q1:Are You Trading Company or Factory?
We,Shandong Hongxin Machinery is a Factory with 21 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like blade, belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your required raw material.

---
