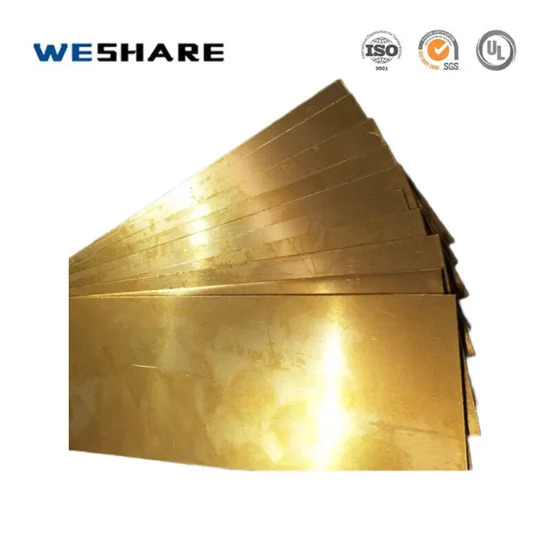

C2680 Brass Sheet with High Corrosion Resistance & Excellent Machinability for Electronics, Automotive and Mechanical Applications

Product Description

Product DescriptionC2680 brass plate is an alloy with copper as the main component, mainly composed of copper and zinc, and is widely used in many industries such as electronics, electrical, machinery, and construction. It has good machinability, corrosion resistance, and excellent electrical conductivity.
Important indicators of C2680 brass plate:
Chemical composition: C2680 brass plate is mainly composed of copper and zinc, of which the content of copper is usually between about 60%-70% and the content of zinc is about 30%-40%. This ratio gives it high strength and good corrosion resistance.
Mechanical properties:
Tensile strength: usually between 350-450 MPa.
Yield strength: 180-250 MPa.
Elongation: **30%** or more, showing its excellent plasticity and ductility.
Hardness: The Brinell hardness of C2680 brass plate is generally 60-80 HB, and the hardness can be adjusted according to different heat treatment and processing processes.
Conductivity: The conductivity can reach 20-30% IACS, making it widely used in products that require high conductivity.

ALUMINUM PLATE
Alloy No.	C1100	C2680	1060
Width	600,1000mm	<3000mm	Customized
Thickness	600:0.3-20 1000:0.5-20	400-600:0.3-0.5 ≤1000:0.5-3.0 ≤3000:3.0-10	0.3-6.0
Temper	Customized	Customized	Customized

1/Excellent conductive properties
Pure copper material has excellent electrical conductivity and is the best choice for manufacturing cables, electrical busbars, connectors and other products.
2/High thermal conductivity
Suitable for use in radiators, heat exchangers and industrial boilers to dissipate heat quickly and efficiently.
3/Excellent corrosion resistance
Anti-oxidation and chemical corrosion resistance, extended service life, especially suitable for harsh environments.
4/Good processing performance
It has strong ductility and formability, and supports various processing methods such as deep drawing, bending, cutting, and welding.
5/Environmental protection and recyclability
Pure copper is a completely recyclable material, which conforms to the concept of environmental protection and reduces resource waste.
Detailed Photos
Certifications
Why choose us
Company Profile
Packing

---
