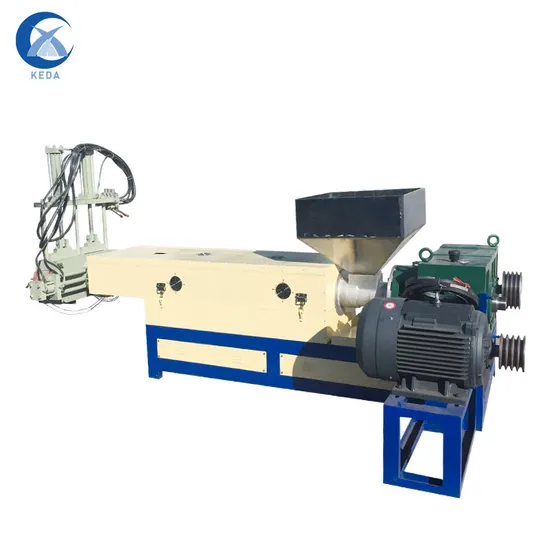

Waste PP/PE/HDPE/LDPE Flake/Scrap Agriculture Film Woven/Raffia/Cement/Shopping Bag Recycling Plastic Pellet/Granule Granulator Machine Line

Product Description

APPLY:PP/PE/ABS/PA/PC/ETC
CAPACITY:100-1000(KG/H)
POWER:22-150(KW)
QUALITY ASSURANCE:
1.ELEXTRICAL BOX : High-tech power distribution safe use.
2.HOPPER : Control extrusiton conditions,suitable for kinds of material processing.
3.EXHAUST : Safely purge air and control air pressure.
4.SCREEN CHANGER : Fast and easy,fast and fast.

model		SJK-125	SJK-150	SJK-180	SJK-200	SJK-220
Screw diameter	Host	125mm	147mm	177mm	197mm	217mm
	auxiliary	125mm	125mm	147mm	177mm	177mm
Motor power	Host	22KW	37KW	45KW	55KW	75KW
	auxiliary	11KW	15KJW	15KW	18.5KW	22KW
Rotating speed		60-65	60-65	60-65	55-60	50-55
productivity		100-150kg/h	150-220kg	200-300kg	300-400kg	500kg
weight		2850kg	3500kg	4250kg	5680kg	6880kg

Characteristic: unit include:extrusion granulating machine, heating system, power distribution box,cooling flume, and cutter. The machine can produces continuously and only needs one person to operate. The machine are automated from feeding materrials to discharging particles. Make full use of high friction uninterrupted heating system, automatic heating production,avoiding continuous heating and saving energy. Using full automatic power distribution system to ensure the normal operation of the motor. Screw barrel are made of 40Cr imported high strength and high quality, durable in use. Appearance of the machine is beautiful and generous. Based on customer requirements, color is sprayed. The machine adopts ZLYJ series hardened reducer, noise free, maintenance free and long service life. The machine is equipped with quick net changing device, convenient and efficient. The machine is equipped with one hob cutting machine by electromagnetic speed-regulating and has low noise, hob can't be abrasive within 1000t.

---
