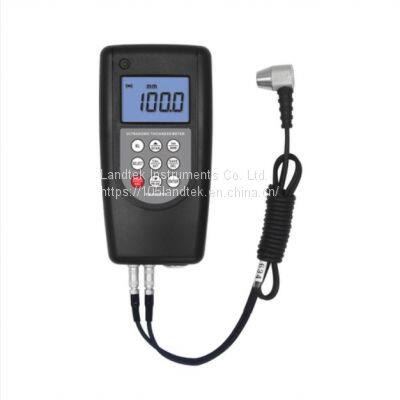

Multi Mode Ultrasonic Thickness Gauge TM-8819-T6
Features:
* Multi-mode: Pulse-Echo mode (used for flaw and pit detection) and Echo-Echo mode (used for measurements eliminating paint or coating thickness).
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Details:
Unit System:Metric system or British system (optional)
Display:LCD with backlight
Range:
Pulse-Echo mode: (0.65~600)mm (in Steel)
Echo-Echo mode: (3~60)mm
Resolution:0.1mm / 0.01mm / 0.001inch
Accuracy:±(0.5%n + 0.05mm), depends on materials and conditions
Measurement Period:
4 times per second for single point mode and 10 times per second for scan mode
Sound Velocity:1000m/s~9999 m/s
Memory for up to 20 files(99 values for each file)of stored values
Working Mode:
There are two working modes of thickness measurement: single mode and scan mode
Operating Conditions:
Temperature:0C~40C Humidity:<85%RH
Power Supply:4x1.5V AAA(UM-4)Battery
Dimensions:142mmx72mmx34mm
Weight:175g(Not Including Batteries)
Standard Accessories:
Main Unit:
Standard Probe
Coupling Agent
Carrying Case(B04)
Operation Manual
Optional Accessories:
Other Special-purpose Probe
RS-232C Data Cable with Software
Bluetooth Data Adapter with Software
GUANGZHOU LANDTEK INSTRUMENT CO LTD is the real professional manufacturer of meters and instruments in China over 20 years.
To Lisa Li
Email / Skype: lisali0428@outlook.com
For more details,please feel free to contact Lisa.Thank you!
>>
