US$3.60
1,000-9,999,999 Pieces
US$0.30
10,000,000+ Pieces
Basic Info.
Lifting Eye Type
Endless Round
Rope Core Type
High Tenacity Pes Yarn
Certification
GS, CE, ISO 9001, En1492-2
Sling Safety Factor
5:1, 6:1,7:1
Specification
100% Polyester
Packaging & Delivery
Package Size
56.00cm * 36.00cm * 24.00cm
Package Gross Weight
24.000kg
Product Description
Product Description

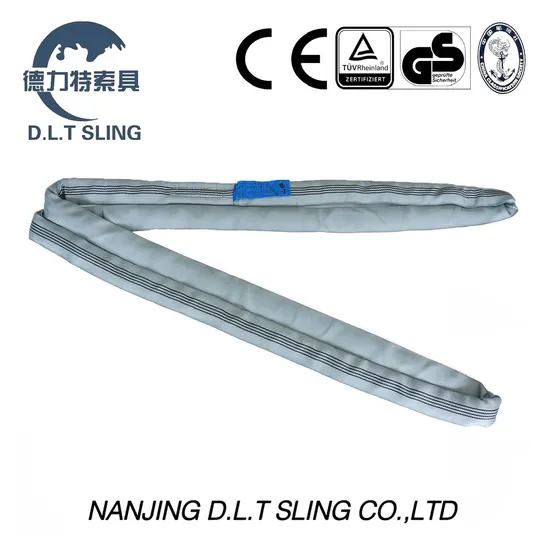

100% Polyester 4 Tons Round Sling for Lifting sling
Round sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted. Round sling is a continuous loop made from polyester yarn encased in a sleeve of polyester or Nylon fabric. The sleeve is so constructed that it protects the internal rows of yarn filament and keeps them in a parallel formation at all times. The yarn fibre core is free to spread out into a flat shape where the Round sling is in contact with its load. This provides a broad support, which cushions the load against damage and reduces slipping. The low stretch characteristics of the polyester yarn also prevent 'load bounce' when hoisting very heavy weights. Manufactured to EN 1492-2, JB/T8521.2, AS4497.1 conforming to the CE GS.
The unique advantages of Round Sling:
1,Color code, in according with international standard, to validate sling capacity.
2,Special thickness sleeves and special technical to add using life.
3,Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4,Clearly print WLL and length on surface of sling.
,Change-bearing point to add using life.
6,If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.
7,100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
8,Clearly tag with serial number and a copy of certificate together with one sling. 9,Working temperature range: -40ºC-100ºC
Conformity EC Council Direcive 2006/42/EC Machinery
Round Sling's SWL WLL M CC
Stock No. Color | WLL | SWL,WLL(t),M,CC | Double Multi-set SWL(t) |
Vertical | Choker | Vertical | Choker | Vertical | Choker | Vertical |
| 0-7° | 7-45° | 45-60° | <45° | <45° | 45-60° | 45-60° |
| | | | | | | | |
| 1 | 0.8 | 2 | 1.4 | 1 | 1.4 | 1.12 | 1 | 0.8 |
| RS7010 | 1t | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 2,800 | 1,120 | 1,000 | 800 |
| RS7020 | 2t | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 5,600 | 2,240 | 2,000 | 1,600 |
| RS7030 | 3t | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 8,400 | 3,360 | 3,000 | 2,400 |
| RS7040 | 4t | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 11,200 | 4,480 | 4,000 | 3,200 |
| RS7050 | 5t | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 14,000 | 5,600 | 5,000 | 4,000 |
| RS7060 | 6t | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 16,800 | 6,720 | 6,000 | 4,800 |
| RS7080 | 8t | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 22,400 | 8,960 | 8,000 | 6,400 |
| RS7100 | 10t | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 28,000 | 11,200 | 10,000 | 8,000 |
| RS7120 | 12t | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 33,600 | 13,440 | 12,000 | 9,600 |
| RS7150 | 15t | 15,000 | 12,000 | 30,000 | 21,000 | 15,000 | 21,000 | 16,800 | 15,000 | 12,000 |
| RS7200 | 20t | 20,000 | 16,000 | 40,000 | 28,000 | 20,000 | 28,000 | 22,400 | 20,000 | 16,000 |
| RS7300 | 30t | 30,000 | 24,000 | 60,000 | 42,000 | 30,000 | 42,000 | 33,600 | 30,000 | 24,000 |
Product Standards
· Webbing Slings: ISO4878, EN1492-1, ASME B30.9, AS1353
· Round Slings: ISO4878, EN1492-2, ASME B30.9, AS4497 · Ratchet Straps/Tie Downs: EN12195, WSTDA, AS/NZS 4380.2001 Our Advantages
· Our products are known for their superior quality and durability.
· Our company is at the forefront of technological innovation in our industry.
· Our team has decades of combined experience.
· We pride ourselves on excellent customer service and support.
· Our products are cost-effective and provide great value for money.
· Our efficient logistics ensure timely delivery of orders.
· We offer customized solutions to meet specific client needs.
· Our products are eco-friendly and produced with minimal environmental impact.
· Our products are trusted by customers worldwide.
· We have a professional and dedicated team. Certifications
FAQ
1. What are the standard lengths of the slings? Can they be customized?
Our standard lengths range from 1 meter to 20 meters. If you have special requirements, we also offer custom length services. Please contact our sales team for more information. 2. How do I choose the right webbing sling?
When choosing a webbing sling, consider the load weight, lifting method, sling length, and the environment in which it will be used. Ensure the sling's Working Load Limit (WLL) is appropriate for your lifting requirements.
3. What is the Working Load Limit (WLL) of a webbing sling? The WLL is the maximum weight a webbing sling can safely lift. It is crucial to never exceed the WLL specified by the manufacturer to avoid accidents and damage.
4. Can damaged slings be repaired?
It is not recommended to repair slings yourself. If you find any damage, please replace the sling immediately to ensure safe usage.
5. What colors are available for your slings?
Our slings come in various colors, including purple, green, yellow, and gray, with different colors typically representing different load capacities.
6. How can I order your products? You can place an order through our official website or contact our sales representatives for custom orders. We offer worldwide shipping services.
>>
