Rotary Kiln for Soil Restoration

Product Description

Rotary Kiln for Soil Restoration
1. Introduction of rotary kiln for Soil restoration
Rotary Kiln for restoration of soil is characterized by high temperature, long stay of gas, large thermal capacity, good thermal stability, alkaline environment, no waste residue discharge and so on.
While producing clinker, incineration and curing treatment pollute the soil.
Applicability: contaminated soil, organic pollutants and heavy metals can be treated.
It is not suitable for mercury, arsenic, lead and other heavy metal contaminated soil.
The soil pretreatment system is carried out in a closed environment to ensure the effect of contaminated soil treatment and the safety of production.

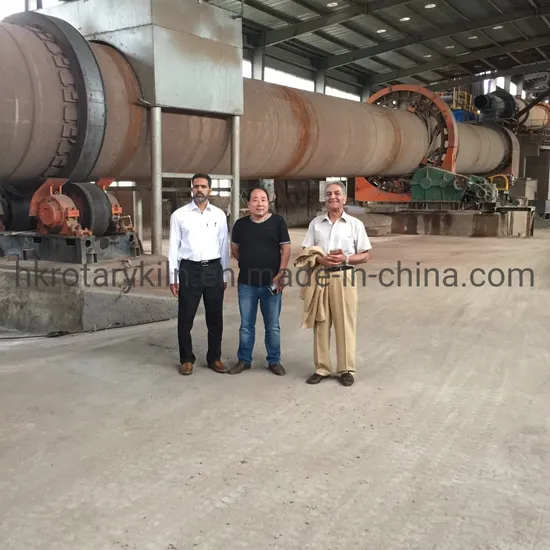

2.Pictures of rotary kiln for Soil restoration
3. Working principle of rotary kiln for Soil restoration
By using the characteristics of high temperature, long stay of gas, large thermal capacity, good thermal stability, alkaline environment and no waste residue discharge in the rotary kiln, the soil was polluted by incineration and solidification while producing clinker.
The organic matter contaminated soil enters the rotary kiln from the flue gas chamber at the end of the kiln.
The gas phase temperature in the kiln can reach 1800 ºC, and the material temperature is about 1450 ºC.
Under the high temperature condition of the kiln, the organic pollutants in the contaminated soil can be transformed into inorganic compounds, high temperature airflow and high fineness.
4.Technical parameters of rotary kiln for Soil restoration

Specification	Kiln Size					Motor Power (kw)	Total Weight (t)	Remark
	Diameter(m)	Length(m)	Slope (%)	Yield (t/d)	Speed (r/min)
Φ2.5×40	2.5	40	3.5	180	0.44-2.44	55	149.61
Φ2.5×50	2.5	50	3	200	0.62-1.86	55	187.37
Φ2.5×54	2.5	54	3.5	280	0.48-1.45	55	196.29	External decomposition kiln
Φ2.7×42	2.7	42	3.5	320	0.10-1.52	55	198.5	----
Φ2.8×44	2.8	44	3.5	450	0.437-2.18	55	201.58	External decomposition kiln
Φ3.0×45	3.0	45	3.5	500	0.5-2.47	75	201.94	----
Φ3.0×48	3	48	3.5	700	0.6-3.48	100	237	External decomposition kiln
Φ3.0×60	3.0	60	4	800	0.3-2	100	310	----
Φ3.2×50	3.5	50	4	1000	0.6-3	125	278	External decomposition kiln
Φ3.3×52	3.3	52	3.5	1300	0.266-2.66	125	283	Preheating calciner
Φ3.5×54	3.5	54	3.5	1500	0.55-3.4	220	363	Preheating calciner
Φ3.6×70	3.6	70	3.5	1800	0.25-1.25	125	419	Waste heat generator kiln
Φ4.0×56	4.0	56	4	2300	0.41-4.07	315	456	Preheating calciner
Φ4.0×60	4	60	3.5	2500	0.396-3.96	315	510	Preheating calciner

5. Characteristics of rotary kiln for Soil restoration
(1)The rotary kiln for soil restoration is simple in operation, reliable in operation, high in automation level, smooth in air flow, stable in production and high in safety.
(2)Soil restoration rotary kiln has the characteristics of energy saving and environmental protection, strong controllability, good operation and maintenance, no waste residue discharge and so on. It also plays a key role in soil protection.
(3)The productivity of clinker increased by more than 10% and the operating rate of rotary kiln was increased by more than 10%. While clinker was produced, the contaminated soil was treated by incineration and solidification.
Packaging & Shipping
Our Services
From the design, production, installation and debugging, we can provide training and guidance for the buyer's workers, such as send engineers to direct the constrution site. We also provide one-year maintenance for the machine.
Company Information
Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill, stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!

---
