US$20,000.00-25,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Control System
Computerized
Bottle Volume
100ml to 2000ml
Machine Capacity
4000 Bottles Per Hour
Machine Installation Power
55kw
Suitable for
Water Bottle, Beverage Bottle, Oil Bottle...Ect
Workers Requests
1 Worker
Certificate
SGS, ISO, Ce,..
Transport Package
Wooden Export Package
Specification
ISO, SGS, CE
Origin
Zhangjiagang City, China
Production Capacity
50/Month
Product Description

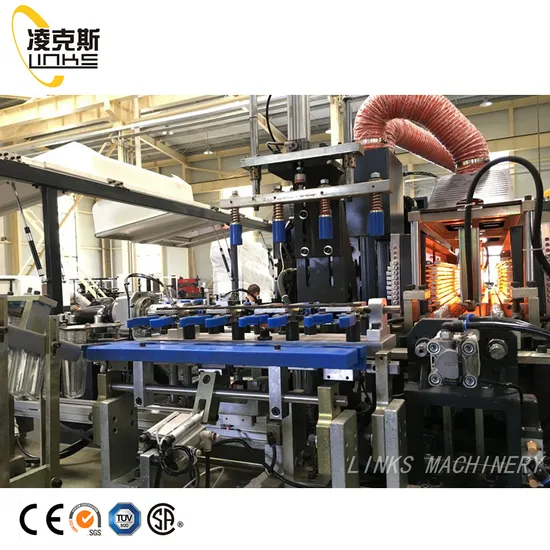

Automatic 4000bph PET Bottle Blow Molding Machine
Automatic bottle blowing molding machine is suitable for producing PET plastic contains and bottles in all shapes. It is widely used to produce water bottles, carbonated bottles, oil bottles and etc.
Stable performance with advanced PLC, and operate the whole machine with human-machine interface touch screen, which make the operation and adjustment easy.
Heating temperature and blowing time etc technology parameters are corresponding set according to customer's different preform and bottle shape.
Equip with automatic preform unscrambler and preform elevator.
Low cost, high efficiency, easy maintenance, with automatic technological process.
Model | LK-2000 | LK-4000L | LK-6000 |
Theoretical Output(b/h) | 2200 | 4000 | 6000 |
Clamping System | Cavities | 2 | 4 | 6 |
Clamping Unit(Kg) | 20000 | 48000 | 56000 |
Mold Stroke(mm) | 120 | 130 | 90 |
Stretch Stroke(mm) | 320 | 340 | 250 |
Bottom Stroke(mm) | 30 | 30 | 30 |
Cavity Pitch(mm) | 120 | 120 | 120 |
Heating Pitch(mm) | 55 | 55 | 55 |
Number of Holders(pcs) | 64 | 114 | 114 |
Container | Max. Container Volume(L) | 2 | 2 | 0.6 |
() Max. Neck Diameter(mm) | 32/38 | 38 | 38 |
Max. Preform Height(mm) | 140 | 140 | 100 |
Max. Container Diameter(mm) | 105 | 110 | 65 |
Max. Container Height(mm) | 320 | 340 | 250 |
Electrical System | Heating Oven | 2×9 | 4×4 | 8×8 |
× Box × Channel | 2×9 | 4×12 | 8×7 |
Number of Lamp(pcs) | 18 | 48 | 56 |
Heating Power(kw) | 21.6 | 57.6 | 67.5 |
Installed Power(kw) | 25.5 | 65 | 75 |
Voltage(V) | 220V/380V/3phases |
Air System | Blowing Pressure(Mpa) | 3.5 | 3.5 | 3.5 |
High Pressure Air Consuming(L/min) | 2000 | 4200 | 5600 |
Chiller System | Temperature(c) | 10-15 |
Pressure(Mpa) | 0.3-0.5 | 0.3-0.5 | 0.4 |
Flow Rate(L/min) | 40 | 80 | 80 |
Heating Power(HP) | 4 | 5 | 5 |
Machine | (L×W×H) Machine Dimension(mm) | 2600×1800×1800 | 3800×2000×2000 | 4800×2200×1800 |
Weight(kg) | 3500 | 6000 | 5500 |
FAQ
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.
3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work
>>
