Stationary Concrete Pump Hydraulic Trailer Truck Mini Diesel Portable Gear Mortar Concrete Pumpconcrete Gear Pump

Product Description

Hot Sales

Product Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
stone concrete pump is a motor-driven high-pressure S pipe valve fine stone
concrete pump. The machine system is reliable, low failure rate, easy maintenance, is the ideal fine stone (mortar) concrete conveying equipment. Can be applied to water conservancy, electricity, railways, highways, tunnels, bridges and culverts, ports, mines, high-rise buildings, national defense projects. This machine is especially suitable for large-scale and high-efficiency construction of fine-grained concrete filled layer or mortar filled layer in floor heating project. It can also be used for conveying fine aggregate concrete or mortar in construction. This machine is equipped with spray accessories, but also do spray pump, for concrete, mortar, refractories and green soil spraying and throwing the main technical features are as follows: - Distribution valve using advanced S-tube valve, good sealing, simple and reliable structure. Eye board and wear ring wear-resistant alloy, good wear resistance, long life, easy to replace, wear ring can automatically compensate for the gap mechanism. - hydraulic system electronic control commutation, commutation impact small. - With low-pressure large displacement and high-pressure small displacement of two working methods.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

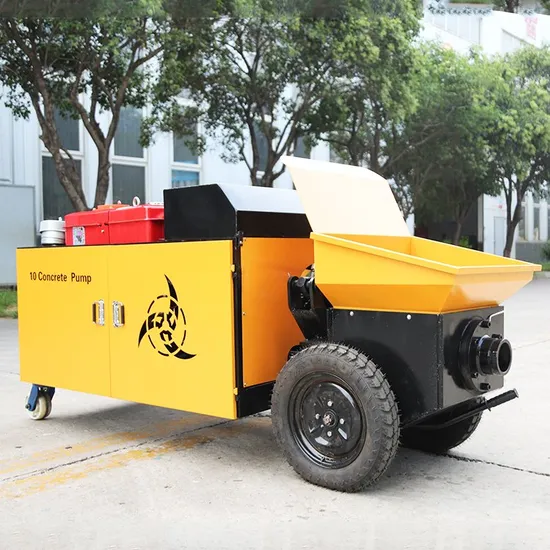

Model:	10 Concrete Pump with Diesel engine
Working capacity:	7-11m³/H
Outlet pressure:	8Mpa
Max Granules diameter:	3cm
Diesel engine:	Changchai
Power:	17.8KW/28HP
Conveying cylinder size:	Φ 140*500mm
Working horizontal distance:	Max 80m
Working vertical Height:	Max 30m
Weight:	850KG
Machine Size:	Machine size:2480-1140-1400mm
Diameter of steel pipe:	100MM

Detailed Photos
Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
