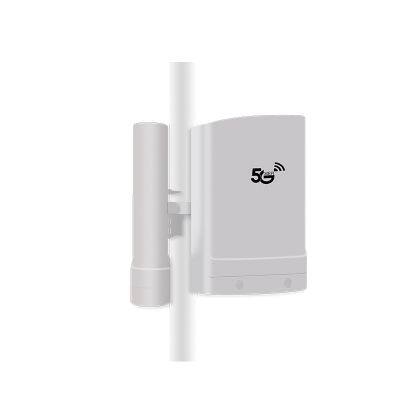

| Product name | SA NSA waterproof IP 65 outdoor 5g router |
| Model Number | HY8510D |
| Chipset | 5G/LTE: UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz |
| Wi-Fi: MTK7621A+7612E+7603E | |
| RF standard | 5G NR(3GPP Release 15 )/TDD-LTE/FDD-LTE |
| Flash | 2 Gb |
| RAM | DDR 4 Gb |
| Ethernet LAN | 3 * Gigabit RJ45 LAN Ports; 10/100/1000 auto-sensing |
| LED | 5 LED Indicators (PWR, 5G/LTE, 5G Wi-Fi, 2.4G Wi-Fi, Network Signal) |
| SIM | 1 SIM (3FF); Support 1,8V & 3.3V |
| Power Indicator | Indicate power on/off status |
| Wi-Fi Indicator | Indicate Wi-Fi on/off status |
| Network Indicator | Indicate network link status |
| Signal Bar Indicator | Indicate network signal strength |
| Frequency | 5G NR: N1/N3/N8/N28/N41/N77/N78/N79 |
| 4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ B28B, B32 can be customized; | |
| 4G TDD: B34/B38/B39/B40/B41 | |
| Antenna | 7 Built-in 5G/LTE antennas, 4 Built-in Wi-Fi antennas (2.4G+5G) |
| Power Consumption | <24W |
| Waterproof | IP65 |
| Power Supply | POE 48V 0.5A |
| Buttons | 1. Power ON/OFF Button 2. Reset Key |
| USIM Slot | Support standard 1.8V / 3.3V USIM |
| WPS Button | Click to start WPS connection |
| USB | TYPE_A USB3.1, for test |
| DC | DC 2.0 |
| MIMO | 5G DL MIMO 4*4, UL MIMO 1*1 LTE: MIMO 2*2 WIFI：MIMO 2*2(5G) MIMO 2*2(2.4G) |
| TX/RX | 2T4R/1T2R |
| Output Power | 5G NR: 23+-2dBm LTE: 23+-2dBm |
| Antenna | 5 Built-in 5G antennas 2 Built-in 4G antennas |
| Antenna Gain | 5 dBi |
| Wi-Fi Frequency | 2.4GHz/5GHz |
| Wi-Fi Antenna | 2 Built-in 5G Wi-Fi antennas |
| 2 Built-in 2.4G Wi-Fi antennas | |
| Wi-Fi Output Power | 16 dBm/2.4G; 18 dBm/5G; |
| Wi-Fi Channel BW | 20MHz,40MHz,80MHz(ac) |
| Wi-Fi Antenna Gain | 4 dB |
| Peak Output | 5G NR: 1Gbps (UL), 2Gbps (DL) |
| APN Setup | APN name, PDP(IPV4/IPV6/IPV4V6) |
| DHCP Setup | Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time |
| Static Route | Route Setup on WAN/LAN interface |
| DDNS | Support |
| Work Mode | NAT/ Router mode |
| Dimension | Box size:38*21*10cm; 1310g/pc |
| Operating Temperature | Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C |
