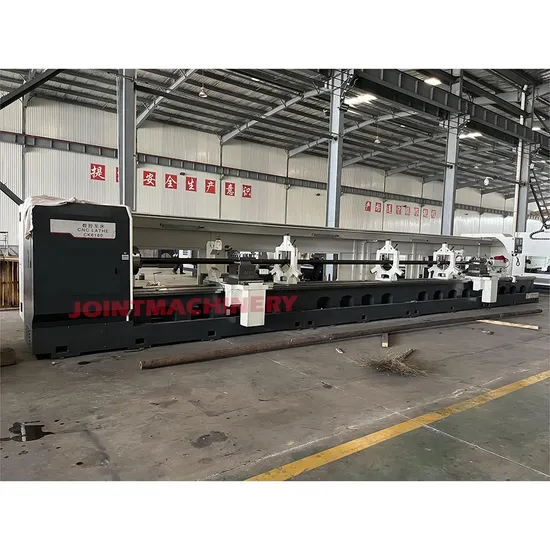

Pipe Threading Lathe Machine for Sales Q1353 Oil Pipe Processing Screw-Cutting

Product Description

This series of pipe thread lathes are mainly used to process internal and external threads of pipes. They can also be used as ordinary lathes. They can process the outer circle, inner hole and end face of shafts, pipes and disc parts. This machine is widely used in the petroleum industry and can process and repair drill pipes, joints, casings and other parts. It is also used for thread processing of various pipelines, drill pipes, etc. in coal, chemical, water conservancy, geological exploration and other industries.
√ Big spindle bore and double chuck allows clamp and process big diameter pipes;
√ Integral machine bed adopts high stength iron to realize high rigidity and precision;
√ Ultrasonic frequenched guide-ways are enough for wear-resistance;
√ Equipped with taper guide bar device to process taper threads.
Double Chuck The impressive big spindle bore and double chuck design empower it to securely clamp and expertly process large-diameter pipes.

Quenched Guide The ultrasonic frequency quenched guide-ways offer exceptional hardness, ensuring superior wear-resistance and long-lasting durability.

Tool Post Turret Equipped with a standard 4-station electric tool post, with optional upgrades to 6, 8, 10, or 12 station turret tools. Enjoy rapid tool change speeds with precise accuracy, enhancing operational efficiency.

Tailstock Comes standard with a manual tailstock, and offers optional hydraulic or pneumatic tailstock, tailored for your operational needs.
Pipe Threading Lathe Machine Q1353 Oil Industry Machine Lathe

Item		Unit	Q1353
Max diameter swing over bed		mm	1250
Max diameter swing over cross slide		mm	860
Max length of workpiece		mm	1500
Width of bed		mm	755
Spindle bore		mm	540
Power of spindle motor		kw	22
Spindle speed		r/min	VF2 Steps 23-260
Z axis feed grade/range		mm/r	32/0.1-1.5
X axis feed grade/range		mm/r	32/0.05-0.75
Carriage rapid traverse speed		mm/min	3740
Cross slide rapid traverse speed		mm/min	1870
Metric thread grade/range		mm	23/1-15
Inch thread grade/range		T.P.I	22/28-2
Module thread grade/range		mm	-
DP thread grade/range		D.P.	-
Traverse of cross slide		mm	520
Max traverse of turret		mm	300
Tailstock quill travel		mm	300
Tailstock quill diameter/taper		mm	Φ140/MT6#
Chuck			middle Φ1000 4-jaw electric chuck
Dimension		mm	5000*2100*1700
Net weight		T	15

Shenzhen Joint Machinery Co., Ltd. proudly stands as a leading manufacturer and exporter of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Our unwavering commitment is to supply high-quality machinery paired with exceptional service to our worldwide clientele. We prioritize stringent quality control and continuous improvements to ensure that our products meet the pinnacle of industry standards. By integrating core technologies from Taiwan and Germany with cutting-edge production equipment and processes, we deliver products of unparalleled quality and reliability. Our machines are celebrated for their extraordinary precision, stability, and dependability, adept at fulfilling diverse complex and high-demand machining needs. Our global footprint spans across Asia, Europe, South America, North America, and beyond, with our products gaining widespread acclaim and popularity. We have forged enduring partnerships with clients from various countries and regions, collaboratively creating substantial business value.

---
