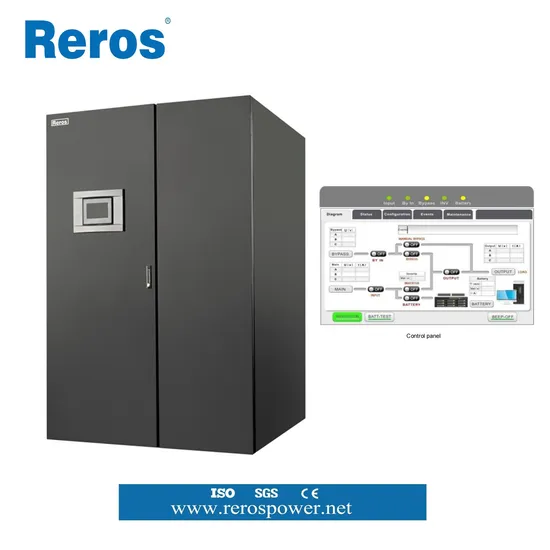

3/3 Online Transformer Base UPS System Three Phase, Low Frequency, Industry Power Supply UPS

Product Description

Product Description
Product introduction :
3B3GX 100K-600K is based on double conversion on-line intelligent UPS. It contains a number of advanced technology in the UPS field, with 12 pulse rectifier technology. now can be 8 sets of UPS in parallel directly, different capacity can be in parallel, parallel system can share battery pack, annular communication line parallel is our unique feature. Parallel is simple and convenient, has strong flexibility.It is designed for industrial manufacture environment. Key components in redundancy design adopt advanced industrial power device, superior performance of SPWM inverter and the international advanced technology such as intelligent multi-mode battery management technology, and plenty of power management software, has been widely used in metallurgy, chemical industry, building material, glass, electronics, automobile and other fields.
Main feature :
1.IGBT inverter and output isolation transformer
2.Manual maintenance bypass switch
3.Wide input voltage range
4.RS232/RS485/dry contact communication port
5.SNMP adapter (optional)
6.Fully DSP control and high reliability and performance
7.3 phase UPS allow 100% unbalanced load
8.EPO function(optional)
9.7 inches touchable LCD screen
10.5th & 11th harmonic filter can be added(optional)
Application :
1.Data center
2.Industrial equipment
3.Commercial facility
4.Telecom system
5.Medical/bank system
6.Precision instrument
Product Parameters
Specification :

Model	3B3 GX 100K	3B3 GX 120K	3B3 GX 160K	3B3 GX 200K	3B3 GX 250K	3B3 GX 300K	3B3 GX 400K	3B3 GX 500K	3B3 GX 600K
Capacity	100 kVA	120 kVA	160 kVA	200 kVA	250 kVA	300 kVA	400 kVA	500 kVA	600 kVA
Input features
Pulse rectifier	6/12 pulse							12 pulse
Voltage range(Vac)	380/400/415Vac±15%(±25%)
Frequency range(HZ)	40-70Hz Automatically select synchronization range according to grid frequency
Phase	3φ4W+PE
Battery voltage(Vdc)	384							480
Battery quantity(Pcs)	30-33 can be adjusted							38-42 can be adjusted
Output features
Power Factor	0.8/0.9
Voltage(V)	L-N:220/230/240±1% L-L:380/400/415±1%
Frequency(HZ)	Mains normal,track mains frequency;Mains abnormal,50±0.2%
Transfer time(ms)	0
Efficiency(AC mode @ full loads)	≥92%
Parallel function	Yes(for optional)
Waveform	Linear Load THD<3%;Non-linear Load THD<5%
Overload	125% load keep 10 min,150% load keep1min
Peak Factor	>3:1
Others
Manual maintenance bypass	with no transfer time bypass maintenance switch
Communication function	RS232 / RS485/dry contact
SNMP(optional)	Can be network monitored by SNMP adapter
Noise (dB)	<65(within 1 meter)
Alarm	Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Protection	Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection
Cooling way	Forced cooling
Working Temperature(ºC)	0~40
Humidity	0~95%,No Condensing
Size(D×W×H) (mm)	800×800×1600(6 pulse)/1100×800×1800(12 pulse)		800×1100×1800(6 pulse)/1113×1405×2005(12 pulse)			1113×1405×2005		1113×1605×2005	1200×2600×2000
Weight(KG)	890	1080	1180	1280	1480	1680		2080	2350

Note:
1. Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.

3B3GX 60-120K

3B3 GX300K

Company Profile
FAQ
FAQ :
1) What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
2) Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept.
3) What is the Terms of Payment?
A: T/T, L/C, D/P, D/A, Western Union, Paypal and MoneyGram (for Small-amount payment).
4) Can you offer Form A or Form E or C/O?
A: Yes, it's no problem, we could apply it from our local government.
5) What's the warranty condition for your UPS?
A: 1 year warranty after the shipment of boarding date, and 1% single phase of UPS amount by free Spare Parts shipped together with each order shipment;
6) How is your delivery time?
A: It depends on your order quantity and specification, usually about 7~20days, and it won't cost more than 35days
7) What are the advantages of your company?
A: Reros has about 30 years manufacturing experience, and more than 20 years exporting experience. We promise your quality and service all the time. Adequate inventory, and supply guarantee for the subsequent renewal of supply, providing different solutions.
