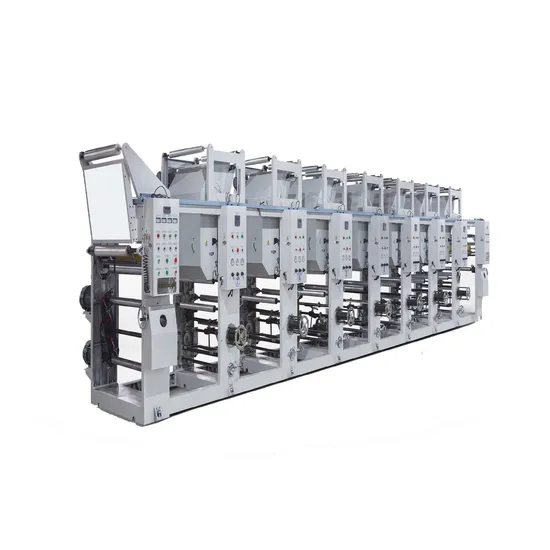

Asy-B Shaftless Manual Type Gravure Printing Machine for Plastic Film in 90m/Min

Product Description

Product Description
1. Unwind and Rewind:Tilting the double location,receiving and replacing material without stopping the machine
2. Printing:360 degrees adjustment gear box, with guide roller fine-tuning Don't stop registration devicemovable type doctor blade ,transverse reciprocating motion(optional pressure roller blades and all adopt pneumatic)
3. Dry oven:Double oven, conjoined twins oven(adopted the company patent technology), centrifugal big fan

Main Technical Parameters
Model	ASY-600B	ASY-800B	ASY-1000B	ASY-1200B
Printing colors	6 (user can increase or decrease)
Diameter of printing cylinder	100-320mm
Max.printing width	600mm	800mm	1000mm	1200mm
Diameter of unwind/rewind	500mm
Machine printing speed	90m/min
Max.printing speed	70m/min
Register precision	±0.2mm
Drying method	Electric heating and steam heating or oil heating
Total power	44kw	48kw	54kw	60kw
Weight of machine	5500KG	6000KG	6500KG	7000KG
Overall dimension	8800*2300*2300mm	8800*2500*2300mm	8800*2700*2300mm	8800*2900*2300mm

2. Unwind part
2.1Structure: Double work station (Inflatable shaft 2 PCS ) Material about Adjustment: manual operation, adjust the amount of + 20mm Unwind shaft equip with magnet powder brake: 50N.M Max diameter of rolling material: φ500mm tension control range: 3-50kg Automatic tension control system 2.2. In-feed unit
Structure: Double roller rolling type, consist of steel and soft rubber roller. Diameter of steel roller: 130mm; with chrome plated treatment. Diameter of rubber roller: 100mm 68°~72° Clutch pressure rollers: manual adjustment Traction roller controlled by magnetic powder brake 5. tension control range: 3-25kg
3. Printing unit
3.1 Printing Cylinder Cylinder Horizontal adjustment of roll: Manual Gear box: high precision gear transmission case Printing cylinder installating method: NO shaft type Max.Length of cylinder: 380mm to 1030mm 3.2 Printing pressure structure Printing pressure method: Double swing arm pneumatic pressure Maximum pressure: 300kg Diameter of rubber roller: 100mm 68°~72° 3.3 Doctor blade Doctor blade can be adjusted up-down, left-right as well as its angle manual Pressure of doctor blade adjustable pneumatic manual Horizontal movement range of doctor blade: 5mm. 3.4 Ink stand Printing cylinders directly dip into the ink type Vertical movement of ink stand: by handwheel Max.depth of printing ink soaked: 50mm 3.5 Drying oven Structure type: Sealed type oven, fast exhaust arc structure of hot air drying and saving energy Heating type: Electric-heating Temper control: auto constant temper control Blower: Double baked Road centrifugal blower 3.6 Guide roller Guide roller length: 1030mm Guide roller diameter:φ70mm 4. Out-feed unit
Structure: Double roller rolling type, consist of steel and soft rubber roller. Diameter of steel roller: 130mm; with chrome plated treatment. Diameter of rubber roller: 100mm 68°~72° Clutch pressure rollers: manual adjustment Drive mode: torque motor Tension control range: 3-50kg 6. Rewind part:
Structure: Double work station (Inflatable shaft 2 PCS ) Material about Adjustment: manual operation, adjust the amount of + 20mm Winding motor: torque motor Winding diameter: φ500mm Tension control range: 3-50kg
Company infomation
Workshop
Delivery
FQA
Packaging & Delivery
1.Packaging Details: wooden pallet or plastic film
2.Delivery Detail: 30-60 days
3.Port: Ningbo port
1.Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai .
We are pleasured to pick up you when you arrived .
2. What should we charge for your engineer?
Our engineer is available to go to your country to install the machine for you. Buyer have to bear the charges including round-trip tickets, cost of visa and accommodations .Salary for one engineer is 80USD per day.
3. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.

---
