Tube Bending Machinery Factory

Product Description

Brief Introduction on Pipe Bending Machine
Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete automatic cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MITSUBISHI,TAIWAN WEINVIEW,JAPAN YUKEN,JAPAN NEIMICOM...
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending applications. Features on Pipe Bending Machine
Interactive PLC touch screen offers easy access to auto and manual operating modes. System diagnostics and multiple language capability. Standard clockwise bending direction. Fully hydraulic clamping on clamp die and pressure die. Drop-way hydraulic clamping. Direct acting hydraulic pressure die with adjustable speed valve. Maximum 100 sets of program storage,Maximum 32 bends for each program. With Independent programmable speeds Y, B, and C axes. Programmable material spring back settings for each bend angle. Automatic release of tube prior to final bend. Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor. Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass. Foot Pedal Cycle start. With Air Cooling System or water cooling system. One set of Tooling for Draw Bending. Wiper die Bracket. 1 Mandrel Rod. Operation and Maintenance Manual. Tool Box with Adjusted Tools. Electric: As required (3 phase 220V or 380V or 415V...)

Optional Industrial Computer Controlling----------------------( Pipe Bending Machine/Tube bender ) Anticipate Mandrel Extraction------------------------( Pipe Bending Machine/Tube bender ) Automatic mandrel/machine lubrication-----------( Pipe Bending Machine/Tube bender ) Anti-clockwise bending direction--------------------( Pipe Bending Machine/Tube bender ) Machine effective length over mandrel ---------------( Pipe Bending Machine/Tube bender ) Safety Mat-------------------------------------------------( Pipe Bending Machine/Tube bender )
Technical Specification

Item	Name		Unit	Technical
01	Max. Bending Capacity:Mild Steel		mm	¢76x5
02	Stainless Steel		mm	¢63x4
03	Min Bending Radius(Draw Bending)		mm	>=1.5D
04	Max. Bending Radius(For Machine)		mm	350
05	Mandrel Length		mm	4200
06	Max. One Time Feeding Length		mm	3000 (Can be Customized)
07	Max Bending Angle		°	190
08	Bending Axis	Speed	Deg/sec	75
		Accuracy	mm	±0.1
		Power	KW	7.5 Controlled by Hydraulic
09	Feeding Axis	Speed	mm/sec	800
		Accuracy	mm	±0.1
		Power	KW	2 Controlled by Servomotor
10	Rotating Axis	Speed	Deg/sec	150
		Accuracy	mm	±0.1
		Power	KW	1 Controlled by Servomotor
11	Machine Size		mm	5600*1200*1300

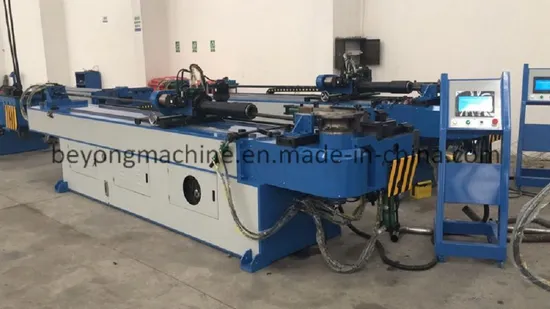

Machine Photos Reference
FAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: Wuxi Airport or Shanghai Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

After Sales Service:
1. We provide manual book,detailed machine installation,commissioning video for help you correctly
operate machine.
2. We provide free installation,commissioning and training at our factory.If you need engineer go to
your factory for machine installation, air tickets,food,hotel,local transportation shoule be at your
account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
Packing&Delivery
Company Introduction:
Zhangjiagang BEYONG Machinery Manufacturing Co.,Ltd has been serving on tube processing machinery industries for over 15 years. We are committed to providing our customers with quality products, solutions and services provided on schedule, at competitive prices. Standard of mechanical parts including structure,characters etc... are similar with European's.For out-sourcing parts including Electric,Hydraulic,Mechanical etc...are from well-known companies.
Our Machines with full line of metal pipe processing machines including tube bending machine, circular saw machine, end forming machine, chamfering machine, saw blade sharpener,riveting machine...etc. Further more,we can customized machines with advanced technology,such as multi-function machine with draw bending+push bending+punching,straightening+bending+cutting and so on.
Our machines export to Italy,Germany,Australia,Russia,New Zealand,Canada, Poland,Mexico, Brazil,Chile,Argentina,Saudi Arabia,South Africa, Egypt,England etc.

---
