5kn, 10kn, 20kn 50kn 100kn 200kn 300kn Computer Electronic Laboratory Universal Testing Machine Tensile Testing Machine Tensile Strength Tester

Product Description

Product Description

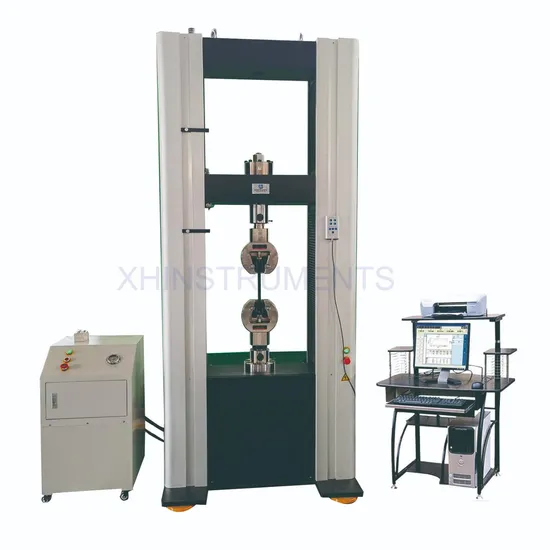

XHL-04 Computer-controlled electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
The machine conform to ISO 7500/1 Class1, ASTM E4, BS 1610 Grade 1, DIN 51221 Class1
Test Standard:
ISO, ASTM, GB, BS, EN, ASTM, JIS...etc
Features:

1	Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control
2	Modern linear guide technology, pre-loaded ball screws and advanced software.
3	Aluminum Alloy Cover make machine looks beautiful .
4	Load accuracy of +/-0.5% down to 0.4% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.
5	Built-in of test methods meeting international test standards.
6	Pre-load test standards for ASTM standard and ISO standard for foam test
7	All test procedure is carried out easily with our professional software
8	Test automation and batch testing
9	Test creation is provided by software
10	Multi points load is calibrated to ensure calibration is accurate
11	History track function easy to track previous test results according to date, name..etc
11	Adopt stable and reliable servo driving system and servo motor, the adjustable rate can up to 1:100000
12	Adopt high precision load cell to keep measurement more accurate and stable.
13	Automatically detection of the adjustment and calibration by electronic system and software.
14	Data acquisition system consists of or channels high precision A/D conversion channel. The maximum resolution of 1/50000
15	With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop
16	Test results can be directly output, or via bmp, excel, txt...etc
17	Cables Connection is very simple

Various Grips for Different Test
Technical Parameter:

Item	-5	-10	-20	-50	-100	-200	-300
Capacity	5KN	10KN	20KN	50KN	100KN	200KN	300KN
Force Test Range	0.2%-100% F.S (0.4%-100% F.S)
Force Test Accuracy	Better than +/-0.5% of indication value
Strength Resolution	+/-1/500000
Displacement Resolution	0.04um
Deformation Error	+/-0.5%
Test Speed Range	0.01mm-500mm/min					0.01mm-300mm/min
Main Frame Type	Double Column
Tension Space	600mm
Compression Space	700mm
Test Width	400mm				600mm
Power Supply	110/220V, 50/60Hz					220V/380V, 50/60Hz
Dimension mm	695x521x1400		780x570x1800		1000×830×2300	1050x910x2500
Weight	180Kgs		400Kgs		900Kgs	1800kg

Recommendend Products
Company Profile

Packaging & Shipping
FAQ
1. How About Machines Calibration?
Answer: All machines is calibrated well in house before it is out of factory, XH Instruments will provide you calibration report, if you need calibration certificate from third party, such as ISO 17025 certificate, we also can provide you with extra charge.
2. What about delivery way and delivery item?
Answer: Courier Express Delivery, Sea Delivery, Air Delivery.
EXW Works, FOB, C&F, CIF, ClP, CPT, FCA, DDU.
3. How can I pay you?
Answer:Bank TT, Western Union, L/C, Paypal.
4. How about you after service?
Answer: XH Instruments will give a feedback within 24 hours.Warranty Period is 12 Months.
For problem caused by product quality within warranty period,XH Instruments will provide product maintenance, technical support, freight out and home as well as spare parts free of charge.
Problem not caused by product quality within warranty period or maintenance beyond warranty period is only charged for replaced parts. However, freight charges home and out are at customer' side (only the replaced part is charged if transportation of instrument is unnecessary).

---
