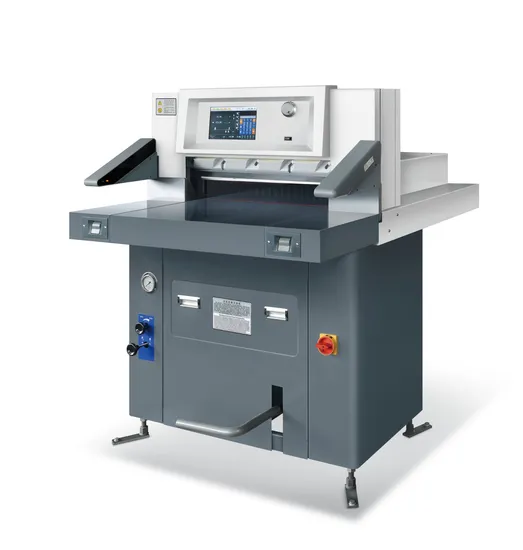

670mm Double Hydraulic Computerized Paper Cutting Machine

Product Description

MAIN SPECIFICATION:

Model	SQZ-67CTN KD
Max cutting length	670mm
Max cutting width	670mm
Max cutting height	80mm
Max clamping pressure	8000N
Cutting speed	20/
Voltage	220V/380V
Cutting motor power	2.2KW
Sending paper motor power	400W
Weight	750kg
External dimension (L*W*H)	1500*1100*1400mm
Packing dimension (L*W*H)	1600*1250*1650mm

THE SYSTEM OF COMPUTER:
1. The displaying panel use 10.4 inch, you can adjust the color by yourself.
2. They have the high quality colors(25600), their storage can reach 170 groups, every group have 250 cut, Its storage time can reach 300,000 hours.
3. The multi-language operating interface, such as Chinese,English,Spanish...
4. It has luminous shortcut key so as to ensure the high stability.

THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB, German MULLER.
2. Servo motor is from invet .

THE PAPER PUSHER CONTROLLED SYSTEM:
1. General lead screw: ABBA Roller ball lead screw: ABBA (can be selected)
2. Double rail guide way: ABBA (the only one in china)


THE HYDRAULIC SYSTEM:
1.Adjustable-pressure double-hydraulic system(paper pressing and cutting both by hydraumatic),
2.combined valve from German, ISO approved hydraulic units.

THE SAFETY PROTECTED SYSTEM:
1. Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity protective device.
4. Machine lock, safety bolting, the safety button and light grid.

OTHER EXPLAINTION:
1. The guarantee year is one year expect some consumptive parts, the machine should use correctly.
2. If the buyer need the supplier go for debug or maintain the machine, the buyer should pay the cost of tickets, room and board, traffic.
3. THE DELIVERY TIME: About 30 to 40 days after receipt of the deposit.(If we have no in stock)
4. In every order, the buyer should tell the supplier the voltage and the documents( clear custom )so as to avoid mistake.
6.The buyer should have the equipment to suspend and discharge for the machine.

---
