US$22,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Dimension
5.1m*1.4m*2.1m
Space Between Tie Bars
470mm*470mm
Transport Package
Naked, Wooden Case, Wooden Pallet
Production Capacity
50 Month
Product Description

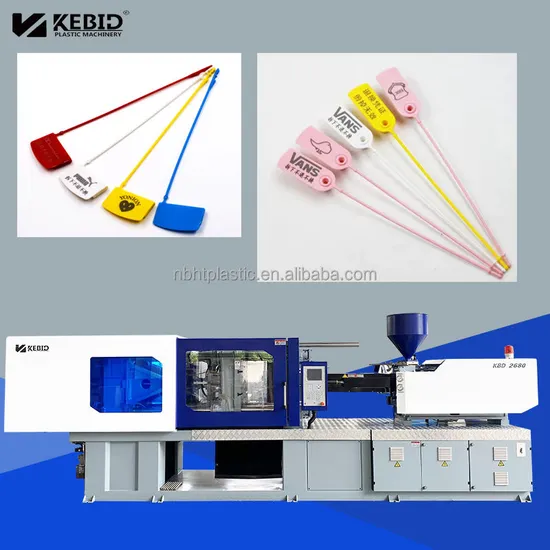

Kebida Brand High Quality Horizontal Thermoplastic Plastic Injection Machine Factory
Kebida machine plastic machinery belongs to the brand of Ningbo Hystan Machinery.
Ningbo Hystan/Kebida Machinery was established in 2002 . Located in Ningbo, China, we are a professional manufacturer of injection moulding machines. Our injection moulding machines are equipped with full servo system for longer life, lower noise, 40-80% energy saving, double cylinder injection for smoother and more accurate.The use of international famous brand accessories, effectively improve the quality of the machine, so that customers can buy and use with confidence.
We can provide many types of machines for customers to choose.
*Servo Energy Saving Injection Moulding Machine
*PET special injection moulding machine
*PVC special injection moulding machine
*Bakelite special injection moulding machine
*Twcolor special injection moulding machine
*Metal powder + plastic special injection moulding machine
*High speed special injection moulding machine
After more than 20 years of development, we believe we can provide better quality and better service. Welcome to choose Hystan/Kebida machine. Company Profile
SPECIFICATION | KBD1780 |
ITEM | A | B | C |
INJECTION UNIT | | | | |
SCREW DIAMETER | mm | 42 | 45 | 48 |
SHOT VOLUME(THEORETICAL) | cm³ | 346 | 373 | 425 |
INJECTION WEIGHT(PS) | g | 318 | 343 | 391 |
INJECTION PRESSURE | Mpa | 202 | 176 | 155 |
SCREW SPEED | rpm | 0-220 |
CLAMPING UNIT | | | | |
CLAMPING FORCE | KN | 1780 |
TOGGLE STROKE | mm | 435 |
SPACE BETWEEN TIE BARS | mm | 470*470 |
MAX.MOLD HEIGHT | mm | 550 |
MIN.MOLD HEIGHT | mm | 180 |
EJECTOR STROKE | mm | 135 |
EJECTOR TONNAGE | KN | 46 |
OTHERS | | | | |
PUMP MOTER POWER | Kw | 22 |
HEATING POWER | Kw | 11.2 |
MACHINE DIMENSION(L*W*H) | m | 5.1*1.4*2.1 |
MACHINE WEIGHT | T | 5.2 |
Detailed Photos
FAQ
1. Q:What's your special service?
A: We provide one-stop service, from injection molding machines to auxiliary machines to molds, things of which allow you to purchase in China.
2. Q:Can the machine customized for my products?
A: we have specail machines for some specail products. also can customized the screw and barrel, base height and structure, hydraulic system, electric design , machine colors and others.
3. Q:Delivery time
A:: Normally Machine orders takes 30 days after pre-payment received, mold order takes 45 days after confirm theproduct drawing or mold drawing. Special and customized orders, please inquiry sales.
4. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Ningbo City, Zhe Jiang Province, China. There has flight from Shanghai(1 hour), Guang Zhou(2 hrs) and Shen Zhen(2 hrs) to our city. Train from Shanghai to our city is 2 hrs. Welcome to visit our factory.
5. Q:Can you engineer come to our place to help with machine installation & commission?
A: Yes, our engineers are available to travel to your place under safe situation. Round flight tickets & accommodation need you bear it.
6.Q: What is the guarantee or warranty of your machines?
A: We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
7. Q:Can I trust you?
A:We're verified supplier & Trade Assurance Supplier. We manufactured injection machine for about 20 years and have many clients all of the world.
>>
