Welcome to visit

Hot Sale Single Wall Disposable Custom Paper Cup Making Machine for Hot Drinks

US$65,000.00-75,000.00 1 set (MOQ)

Basic Info.

Model NO.
XZT-150
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
Bowl Size
4-16oz
Materlal
170-380GSM
Speed.
140-160PCS/Min
Power Supply
3phases 380V 50Hz,34kw(Running Consumption Is 14kw
Air Supply
0.6MPa(Running Consumption 0.5nm3/Min)
Dimension
2460*1620*1780mm
Weight
3000kgs
Transport Package
Wooden Case
Specification
2460L*1620W*1780H
Trademark
New Smart
Origin
China
HS Code
8441309000
Production Capacity
100PCS/Year

Product Description

Our Advantages

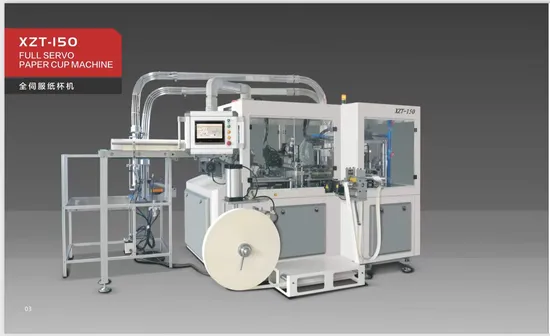

XZT-150 features full servo driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market almost gear/ chain transmission and cam design paper cup machine it provides flexibility,speed,affordable capital cost and low maintenance.
Adopts crankshaft and servo motor control instead of traditional cam transmission, no oil lubricant ,which solved the negative effects of cam and bearing wearing and impacting while machine running at high speed. This breaks through the traditional paper cup machine must using cam to control the lifting and time .
XZT-150 changed the working procedure of bottom sealing . First Leister hot air preheating the cup body,then the cup bottom paper coming .This procedure makes fast sealing while the hot and cold paper touched each other. Then the second Leister hot air heating the bottom to go next knurling process. It makes the paper cup bottom seal more firmly while machine running at high speed . Traditional paper cup machine they do the double bottom heating after bottom paper come to the cup body. XZT-150 new design makes the bottom knurling much better.
Product Parameters

Model XZT-150 Paper Cup Machine
Bowl size 4-16oz
Materlal 170-380GSM single or double PE/PLA coated paper
Speed 140-160pcs/min
Power Supply 3phases 380V 50Hz,34KW(running consumption is 14KW)
Air Supply 0.6Mpa(running consumption 0.5Nm3/min)
Dimension 2460*1620*1780mm
Weight 3000kgs

Detailed Photos
