Tungsten Heavy Alloy - Custom Size High Hardness Tungsten Nickel Iron and Copper Alloy for Aerospace and Ballistics, Supplied by Tungsten Heavy Alloy Supplier

Product Description

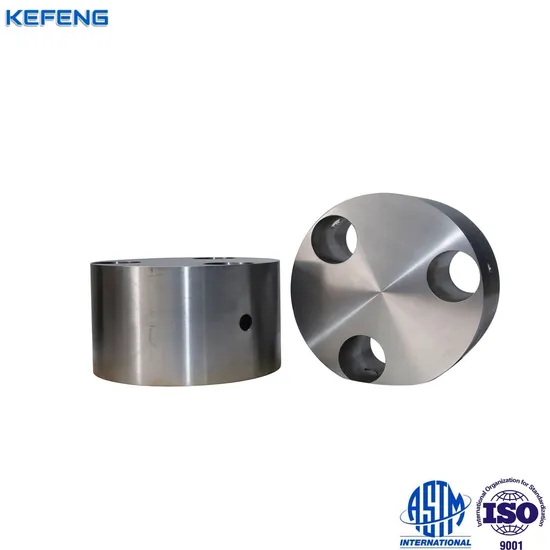

Tungsten Heavy Alloy Balance Weights and Ballast Customized or According To DrawingsWith an acknowledged fame as one of the Chinese most experienced and professional tungsten products manufacturer, we Kefeng manufactures tungsten alloy parts and components to the superior specifications and quality standards, for which the process is ISO9001 certified and materials are SGS approved.
Product Description
This product is a tungsten alloy with a tungsten more than 90% refractory metal which have two-phase composites consisting of W-Ni-Fe or W-Ni- Cu and is made in a particularly high density material, and are widely applied in the fields of aerospace and vehicle industries which are capable to create smallest weights for limited space and balance controlling surfaces and an ideal method for vibration absorption. We are fully equipped with the production lines from raw powder material, sintering,forging to machining finished products of bar, plate, rod, wire and other drawing parts customized.
Characteristics and features
The heavy tungsten alloy material possess the highest melting point of all metals and suitable for very high-temperature applications. It is also characterized by a uniquely low coefficient of thermal expansion and a very high level of dimensional stability.
Application
The high density of tungsten-based alloy weight balance greatly reduces the physical size of the assembly, which makes it easier to control weight distribution and increases the sensitivity of the control mechanism. They are widely used in aerospace, gyroscopes, propellers and helicopter blades or radar equipment and avionics systems, and automotive industry for crankshaft counterweights and chassis counterweights in Formula 1 racing cars or large-scale only engines and the sporting industries as tungsten alloy darts, golf clubs and other applications of weights for balance of aircraft, helicopter rotors and missiles.
Other applications for tungsten heavy alloy machining parts:
Radiation shielding Containers of radioactive isotopes High performance projectiles for underwater hunting Gyro components Balance weights for racing boats and racing cars The optical industry like microscopes and measuring instruments.
Technical parameters

Tungsten heavy alloy	WNiFe (ASTM B777, AMS-T-21014)				WNiCu (ASTM B777, AMS-T-21014)
Designation	90W	93W	95W	97W	90W	93W	95W
Density g/cm3)	16.85~17.30	17.15~17.85	17.75~18.35	18.25~18.85	16.85~17.30	17.15~17.85	17.75~18.35
Tensile Strength (MPa)	758Min	758Min	724Min	689Min	648Min	648Min	648Min
Elongation (%)	5Min	5Min	3Min	2Min	2Min	2Min	1Min
Hardness (HRC)	32Max	33Max	34Max	35Max	32Max	33Max	34Max
Yield strength(MPa)	517Min	517Min	517Min	517Min	517Min	517Min	517Min

---
