Professional Factory Wss-401-F-C Bimetal Thermometer with Back Connection

Product Description

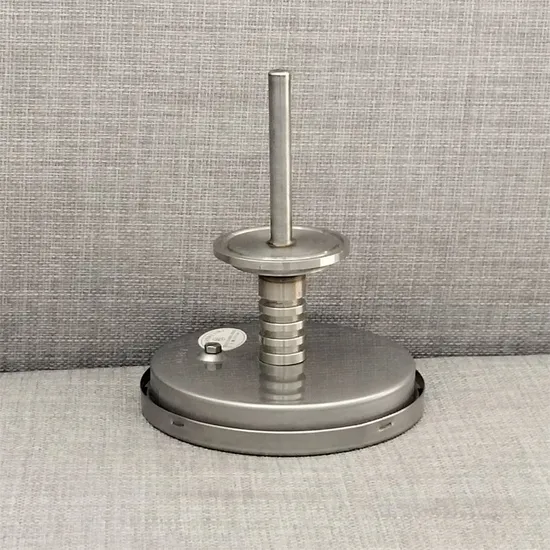

Bimetal thermometer
Bimetal (electric contact) thermometers are suitable for medium and low temperature field detection, can directly measure liquid, gas and steam temperature, with no mercury damage, clear indication, strong, shock resistance. All the instruments are made of stainless steel, which has good waterproof and anti-corrosion properties. Electric contact bimetal thermometer is a kind of instrument suitable for low temperature field detection and automatic control, which can directly measure the temperature of the gas, and automatically control or signal the temperature change of the measured medium. The series is widely used in petroleum, chemical, metallurgy, textile, food and other industries.
Technical parameter
~ Accuracy level: ±1.5%
~ Time constant: not more than 40s
~ Protection pipe pressure: 6.3MPa
~ vInstrument implementation standard: JB/T8803-2015

Type	OD	Measuring range (ºC)	Cell value (ºC)	Insertion length	Protective tube diameter	Mounting thread
				(mm)	d(mm)	M
WSS-3*	60	0~50 0~100 0~150 0~200 0~300 0~400 0~500	1 2 5 10	75;100; 150;200; 250;300; 400;500;	6	M16×1.5
WSS - 4 * WSSX - 4 *	100				10	M27×2
WSS-5*	150				10

---
