Metal Working Lathe

Product Description

Product Description

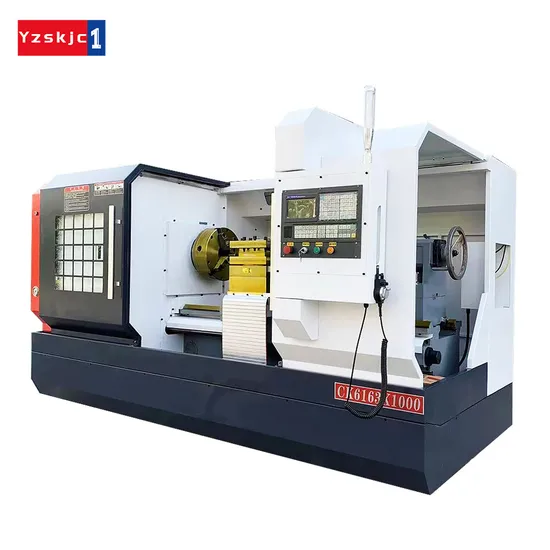

CK6163*6000 CNC LATHE
Product Parameters

Main technical parameters :

Machine model	CK6163/6000
Max.swing over bed (mm)	Φ630
Max.swing over carriaget (mm)	Φ380
Maximum processing length (mm)	5850
Guide rail width (mm)	600
Spindle rotation form	4-speed continuously variable speed
Spindle speed range (r/min)	30-84/53-150/125-350/300-835
Spindle end structure	C11
Spindle hole diameter (mm)	Φ105
Clamping method	Φ400 three-jaw chuck
Main motor	11KW
X/Z stroke (mm)	320/6000
Ball screw diameter * pitch (mm)	32*8/50*10
Rapid moving feed (m/min)	4/6
Standard configuration of tool holder	Electric vertical four-station tool holder
Tool holder tool bar section (mm)	32*32
X/Z direction servo drive motor (Nm)	10/15
Tailstock sleeve diameter (mm)	Φ100
Tailstock sleeve inner hole taper No	MT6#
Tailstock sleeve stroke (mm)	200
Machine tool overall dimensions ((L×W×H)) (mm)	7200*1900*1800
Approximate weight of machine tool (Kg)	9000

CNC lathe main configuration list

Name	Specifications	Quantity	Model	Brand Origin
Control System	GSK980	1	Guangshu	Guangzhou
Spindle unit	self-control	1		Domestic
Screw bearing			Harbin	Domestic
Electric knife holder	LD-6163	1	Hongda	Domestic
Spindle motor	Main motor(11 KW)	1	Shanghai	Domestic
Ball screw		1	Nanjing Craftsmanship	Domestic
Automatic lubrication device		1		Domestic
Cooling pump	125W	1		Domestic
Frequency converter	11KW	1	HY	Domestic

List of documents provided with machine tools

NO	Name	Specifications or markings	Quantity	Remark
1	Machinery instruction manual		1	Mechanical, electrical and hydraulic combined volume
2	Certificate of Compliance		1
3	Machine tool packing list		1
4	System parameter manual		1
5	System operating instructions		1

Main features and function requirements:
This machine tool is a CNC machine tool with high speed, high precision and high reliability. The main components such as the bed base, bed bed, and headboard are all cast from high-strength materials to ensure the stability of the machine tool for long-term use.
Adopting an integral bed structure, the machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
High-speed, high-precision and high-rigidity spindle, variable frequency spindle motor. The spindle is assembled in a constant temperature room. After assembly, it undergoes constant temperature running-in for 72 hours. After being put on the machine, it undergoes a continuous 72-hour test run to ensure the reliability of high-precision performance.
Use the 4-station vertical electric tool holder method, which has fast tool changing speed and high positioning accuracy.
Precision ball screws are used for feed in the X and Z directions. The servo motor is directly connected to the screw through a high-torque and low-inertia imported elastic coupling. The screw support adopts a pre-stretched structure, which can eliminate transmission backlash and pre-compensate the machine tool. The influence of thermal deformation on accuracy during long-term operation ensures positioning accuracy and repeated positioning accuracy; it adopts advanced centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, and the work is stable and reliable.
The machine tool protection adopts a full protection design, which is highly pleasant, unique in appearance, reliable in waterproofing and chip prevention, and easy to maintain.
Packaging & Shipping

Packing and loading :
Our customers :
Our Advantages

Our advantages :
R&D
Jiangsu Yizhong Industrial Design institute is the branch of Jiangsu Yizhong Machine tool
Co.,Ltd has 6 professors ,4 doctoral students ,12 masters ,16 senior engineers ,42
intermediate engineers .Now together with Shanghai's Jiaotong university set up the
SJTU-Yangzhou Industrial Design institute .Now they work together for our national 973# and
863#10000-ton Hydraulic machine robot project.
The company has strong ability for OEM machine tools .
Corporation principle
Tech-based,Service-based ,Self-creation and Joint-cooperation.
Build long time and stable cooperation .
Realize mutual benefit .
OEM supply is powerful.
We have agents in Russia , but we want more agents all over the world , pls consult us freely
and we want to help more friend.
Company Profile

Our company :
Our company is a national leading high-tech enterprise, an innovative enterprise in Jiangsu Province. And have powerful advantages for the OEM machines .
Especially for the Edge planer/edge banding machine. It has obtained the National Torch Program Project Certificate (Project No.: 2011GH040591), the National Key New Product Certificate (Project No.: 2010GR10042), Jiangsu High-tech Products (Certificate No.: 081088G0104N), the Test Report of Shanghai Testing Center, and the National Scientific and Technological Achievements Transformation Fund. And also obtained the national "one the Edge planer/edge banding machine software copyright" certificate, four invention patents and six utility model patents. At present, our company's the Edge planer/edge banding machine has a market share of 80% in China.
Jiangsu Yichong CNC Machine Tool Co., Ltd
Address: Yangzhou Jiangdu High-tech Industrial Park North Park Zip code: 225267
FAQ

FAQ:
What equipment can you get from our factory ?
Lathe machine
CNC Vertical machine center
Leveling machine
Plate edge milling machine
Boring milling machine
Edge planer
Gantry drilling and milling machine
Oil pressure
Rolling machine
We support customized machines , welcome your asking .
Why choose Jiangsu Yizhong Machine Tool Co.,Ltd
Quality guarantee :
We have our own factory 498700m2 and we have mature manufacturing experiences since 2006 .
Before machine sending , we will be debugging a long time and confirm it could run well .
We have a rigorous QA and QC procedures and confirm each process following the orders' standard strictly . welcome our customer-self coming to check the machine tools quality .
Delivery time :
Usually our delivery time from 10 working days to 6 months . according to the machines you want to buy .some machines have machine bed in stock .
When we quote you , we will write the machine tool delivery time , and we will abide it carefully .
Advanced technician team :
We recognize that technical innovation is very important for a manufacturer , so our factory set up the Jiangsu Yizhong Industrial design and reach institute years ago ,which makes our factory powerful in customized machines .
If some technical questions our sales person can not answer , they will ask them and they can give a quick response .
By the way , our engineers are available to customers' local factories to assist them to do installation , operation guide and machine tool upkeep .
Sales team :
Our salesmen all are trained before they serve to our customers in factory , so most questions about the machine tools , they can give fast response ,which will save our customers' time .
Our salesmen all love their jobs , so they have passions when working . if you have any technical questions could ask them better before 12pm ,China time .

---
