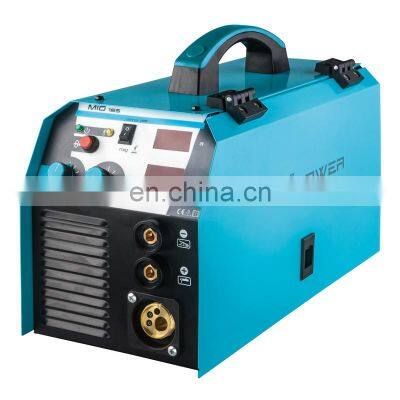

Product DescriptionMain Features1. MIG & MMA function in one machine. 2. Advanced IGBT technology, compact design, lightweight, and energy saving.3. Digital display, precisely controlled welding current, stable welding process, and excellent welding characteristics.4. Automatic over-current, over-heat and over-voltage protection.5. Integrated design with a wire feeder built-in. Facilitate mobility operations.6. Can be used with gas or without gas.7. Applicable for welding low carbon steel and low alloy steel of different thickness.ITEM MIG-M145MIG-M165MIG-M185MIG-M205Input Power Voltage VAC230VAC230VAC230VAC230VInput Power Frequency Hz50/6050/6050/6050/60Rated Input Capacity KVA3.74.55.26.1Output Current Range 3.74.55.47.1Output Current Range(MIG) A40-14040-16040-18040-200Output Current Range (MMA) A20-12020-14020-16020-180Load Voltage V16-2116-2216-2316-24Rated Duty Cycle %60606060Wire Feed Speed M/min3-153-153-153-15Gas Flow L/min15-2015-2015-2015-20Dimensions mm442*184*246442*184*246442*184*246442*184*246Related productsCompany IntroductionCertificationsPacking & DeliveryExhibitionAction nowWhy choose Retop?a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.b. We use all new components,mosfet tube, diode, capacitor and so on imported components.c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost ofrepairing, we just need to change the bad pcb board.d. We provide Warranty period of 1 year for all our items
