3D Filament Extruder Production Line PLA Glass Fiber Carbon Fiberr Extruder Production Line

Product Description

Product Description
Aifuer AFE45 ABS PLA PETG 3d filament extrusion line/ 3d printing filament making machine
Professional 3D Filament Extruder Supplier has been used by designers, engineers and scientists to produce the disposable mechanical products and model, and it is already widely used in health care, education, toys, building, automobile, electronics, and anime field.
Main Features
Feature: Information of the PLA, PA Nylon, PC ,and HIPS and ABS filaments,1. ABS filament process temperature is 230-260° C,melting point is 230° C2. PLA 3D printer filament is 210-235°C, melting point is 200°C3. PVA temperature for printer is 180°C-200°C.Melting point is 200°C.4. PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C5. PC temperature for printer is 230°C-250°CMelting point is 260°C.6. HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.Detailed information :Production Process: Raw plastic material is mixed and fed into the extruder. The extruder shapes the material using a mould, and the formed product goes through a hot water tank for further shaping. It then enters a cooling water tank to cool down. A laser gauge is used to measure the diameter of the product for quality control purposes. The traction machine pulls the product, while an accumulator stores the wire. Finally, the winding machine automatically winds the product.
Production Line Features:
1. The production line is equipped with a high precision Siemens PLC control system.
2. The entire line operates with servo motor and precision gearbox drive, ensuring stable extrusion, smooth running, and accurate speed control.
3. The FLD production line incorporates an Automatic Feedback System for improved efficiency.
4. All devices on the line are centrally controlled through a computer screen, enabling easy and convenient operation.
Product Parameters

AFE45 3d filament extrusion line
Control system	PLC touch screen
Feed back control system	Between laser caliper and tarctor machine
power consumption and power supply	37KW Triphase 380/50 Hz
Raw Material	ABS/PLA/PETG/TPU/Carbon fiber/Glass Fiber
Filament Diameter:	1.75 mm. / 3 mm.
Diameter tolerance	+-0.02~0.03mm
Output Capacity	15~20kg/h
Hopper drier: one set	50KG Volume
Main Motor Power	11KW
Max. Heating Temp.	500degree
Heating Power:	6KW
Machine Size	12000*1100*2600mm
Machine net weight	1900KG
Machine gross weight	2100KG

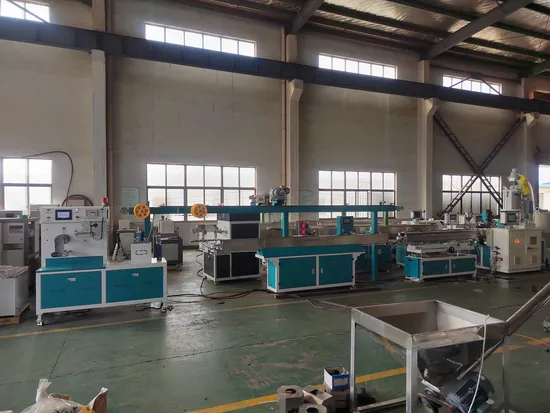

Detailed Photos

Final Products

Company Profile

Suzhou Aifuer Machinery Co., Ltd.
Aifuer plastic machinery is a fast-growing enterprise specializing in the R D,production and sales of plastic machinery.The company has introduced advanced technology at home and abroad,paid attention to technological transformation and continuously developed new products. The main products are 3D printing filament extrusion machine lines and related auxiliaries, also including raw material.
We strive to achieve self-improvement in future technology and services,and are more committed to creating and provid- ing customers with the best products with real value.We will meet the bright future side by side with customers with first-class technology,first-class products and first-class services.
The machines produced by the company have good quality and effective after-sales service.In the foreign market,they have been exported to the United States,Germany,Russia,Spain,Russia,South Africa,Canada,Algeria,Uzbekistan and other countries,creating good sales performance and good feedback.

Packaging & Shipping
FAQ
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up at Zhangjiagang High speed Railway Station, We also provide visit online by video.Q: How can we get the exact price of plastic machine?Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.Q: Do you provide any spare parts with machine?Yes, we offer all necessary spare parts before shipment.(contact us for packing list )Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: What's the advantage of Aifuer?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
