Product Details
Product Description
Product Description
868/656 Security Fence

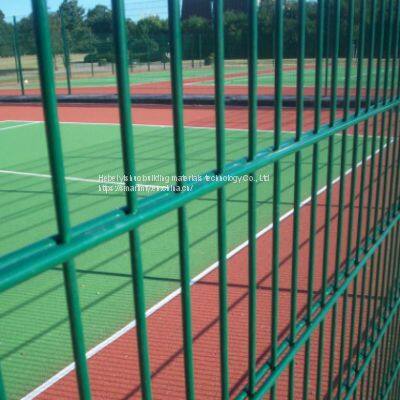

868 Twin Wire Mesh Fencing, also called Double Wire Fence, twin wire panel fencing. It is quite popular in Europe countries, like German. Looked from far away, the wine wire panel is like the regular fencing panel. Nevertheless, unlike traditional welded wire fence as 358 security fence and euro fence, Double Wire Fence panel welded with two horizontal wires is particularly strong and firm.
Double Wire Fence could be normal type with huge holes or 358 fence with small holes. Two choices of the spacing between two doubled wire of common 2D security fence were offered: doubled every horizontal wire, doubled horizontal wire every three horizontal wires. Usually 656 & 868 Twin Wire Mesh Fencing are the most common types of welded twin wire panel fencing. 868 Twin Wire Mesh Fencing means the panel has two 8 mm diameter horizontal wires and a 6 mm diameter vertical wire.
Double Wire Fence is designed for areas with heavy public usage and to satisfy a greater need for protection. The rigid and contemporary Yishuo Building Materials fence system provides a truly creative and durable alternative to current fence systems, without the bulkiness. Yishuo Building Materials offers an urban modern look adaptable to traditional or modern concepts.
Fence panel:
Panel height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1630 mm, 1830 mm, 2030 mm, 2230 mm, 2430 mm.
Panel width: 2000 mm, 2500 mm.
Materials: galvanized carbon steel wire, stainless steel wire, other material available.
Surface treatment: 2D fence panels made from galfan wire, then PVC powder coating (Min.100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: green, black, blue, white. All RAL color is available.
Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
Fence Applications
Double Wire Fence Panels are a universal solution for installation around:
Industrial/factory perimeter
Storage and warehouse areas
Residential houses
Public playgrounds
Schools, public gardens and parks
Sport fields and stadiums
Airports, army bases, prisons and borders
Other high security level perimeter areas
SURFACE TREATMENTS
Galvanized
The fence has standard galvanized anti-corrosion, in galvanization process a layer of zinc is formed on the surface of steel. This coating protect steels against atmospheric corrosion.
Galvanized and powder coating&PVC coated
Galvanized panel fencing systems may be optionally powder coated in a color of your choice. Powder coating enhances the anti-corrosion by preventing the oxidation of zinc, owing to which our fencing systems preserve their aesthetic qualities from even longer
The difference of Galvanized and powder coating&PVC coated
Corrosion Resistent
Special features of our partners are the reliable technology for welding and the elimination of possible corrosion spots.
Their produced fence panel is a subject to strict testing in our in-house laboratory, which checks the welding strength and product’s corrosion-resistance.
This allows us to offer a product with excellent quality features.
Fence posts
Material: High grade steel for maximum strength and rigidity.
Post section (square and round): 60 × 60 mm, 80 × 80 mm, 100 × 100 mm, 120 × 120 mm, 48 mm, 60 mm.
Post Plate thickness: 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm.
Finish: Inside and outside galvanized (Min.275 g/m2), subsequently covered with a polymer powder (Min.60 micron ).
Colors: Same as panel.
Post cap: Metal caps or plastic cap.
Installation:
Posts must be buried into earth, 0.5 m minimum to 0.7 m maximum.
Several panels could be installed on the top of each other to achieve a higher height.
On the top of the fence, if Y posts are used, razor wire and barbed wire could be fitted.
Spacing between brackets in post would better be 0.3 m.
A full installation guide is available upon request.
Packing
1) Pallet packing
2) The entire pallet will be wrapped by stretch film to ensure the tidiness of the goods and prevent the pallet from bumping and scratching
3) Accessories: Clips and screws are packed by sets, plastic film + carton box.
Specification
Double Wire Fence
|
Panel size (mm)
| Hole size(mm)
| Wire diameter(mm)
| Post height(mm)
|
630x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 1100
|
830x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 1300
|
1030x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 1500
|
1230x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 1700
|
1430x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 1900
|
1630x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 2100
|
1830x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 2400
|
2030x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 2600
|
2230x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 2800
|
2430x2500
| 50x200
| 8x2+6
| 6x2+5
| 6x2+4
| 3000
|
Customization accepted
|
Normal Size:
8/6/8
|
mesh size(mm)
| with(M)
| double wire diameter(mm)
| single wire diameter(mm)
| length(mm)
|
200
| 50
| 0.63
| 8
| 6
| 2000 or 2500
|
200
| 50
| 0.83
| 8
| 6
| 2000 or 2500
|
200
| 50
| 1.03
| 8
| 6
| 2000 or 2500
|
200
| 50
| 1.23
| 8
| 6
| 2000 or 2500
|
200
| 50
| 1.43
| 8
| 6
| 2000 or 2500
|
200
| 50
| 1.63
| 8
| 6
| 2000 or 2500
|
200
| 50
| 1.83
| 8
| 6
| 2000 or 2500
|
200
| 50
| 2.03
| 8
| 6
| 2000 or 2500
|
200
| 50
| 2.23
| 8
| 6
| 2000 or 2500
|
200
| 50
| 2.43
| 8
| 6
| 2000 or 2500
|
6/5/6
|
mesh size(mm)
| with(M)
| double wire diameter(mm)
| single wire diameter(mm)
| length(mm)
|
200
| 50
| 0.63
| 6
| 5
| 2000 or 2500
|
200
| 50
| 0.83
| 6
| 5
| 2000 or 2500
|
200
| 50
| 1.03
| 6
| 5
| 2000 or 2500
|
200
| 50
| 1.23
| 6
| 5
| 2000 or 2500
|
200
| 50
| 1.43
| 6
| 5
| 2000 or 2500
|
200
| 50
| 1.63
| 6
| 5
| 2000 or 2500
|
200
| 50
| 1.83
| 6
| 5
| 2000 or 2500
|
200
| 50
| 2.03
| 6
| 5
| 2000 or 2500
|
200
| 50
| 2.23
| 6
| 5
| 2000 or 2500
|
200
| 50
| 2.43
| 6
| 5
| 2000 or 2500
|
Surface Treatment:
Galvanized
The fence has standard galvanized anti-corrosion, in galvanization process a layer of zinc is formed on the surface of steel. This coating protect steels against atmospheric corrosion.
Galvanized and powder coating&PVC coated
Galvanized panel fencing systems may be optionally powder coated in a color of your choice. Powder coating enhances the anti-corrosion by preventing the oxidation of zinc, owing to which our fencing systems preserve their aesthetic qualities from even longer
Features:
Double Wire Fence: Twin wire panel resists deliberately sabotage.
Visibility: See through by holes.
Whether resistance and durability: Galvanized wire and powder coated surface make the panel live a long life.
Simple to installation: With accessories like brackets and clamp bars, the panel could be installed into the posts easily.
Ideal for secondary operations: The 868 Twin Wire Mesh Fencing could be disassembled into parts easily for secondary use.
Advantage:
Blends with traditional and modern architecture
Double wires resist vandalism
See-through panels
Simple cost effective installation
Difficult to cut and climb
Versatile post and flange system
Brackets and hardware for all installation
>>
