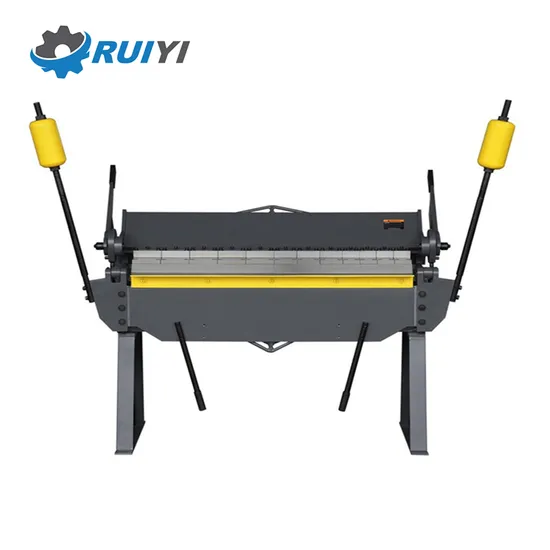

1500mm-4000mm Sheet Metal Manual Hand Folding Bending Machine

Product Description

FEATURES
1. With segment bending blade for the bending of box section
2. Various widths segment shiftable setp
3. With balanced hammer, it can easy to operate and easy for folding
MAIN TECHNICAL DATA

Model	Capacity(mm)			Packing size(cm)	N.W./G.W.(kg)
	Length	Thickness	Angle
W2.0X2040A	2040mm(80")	2.0mm(14Ga)	0-135°	255x76x100	820/970
W2.5X2040A	2040mm(80")	2.5mm(12Ga)	0-135°	255x76x100	1010/1160
W2.0X2540A	2540mm(100")	2.0mm(14Ga)	0-135°	300x76x100	950/1180
W2.5X2540A	2540mm(100")	2.5mm(12Ga)	0-135°	300x76x100	1160/1330
W2.0X3050A	3050mm(120")	2.0mm(14Ga)	0-135°	350x76x110	1490/1690
W1.2X3700A	3700mm(146")	1.2mm(20Ga)	0-135°	425x85x120	1800/2020
W0.8X4000A	4000mm(157")	0.8mm(22Ga)	0-135°	470x90x120	2200/2450

DETAILED PICTURES
VISIT AND TRAINING
GOOD PACKAGE AND SAFTY DELIVERY
FACTORY SHOW
FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a manufacturer.
2.Q:How about the quality of your machines?
A: Our company is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
3. Q:What can you provide for after-sales service?
A: 24 hours' online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.
4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
