High Speed Single Double Nozzle Water Jet Loom Polyster Fabric Weaving Machine

Product Description

Product Description

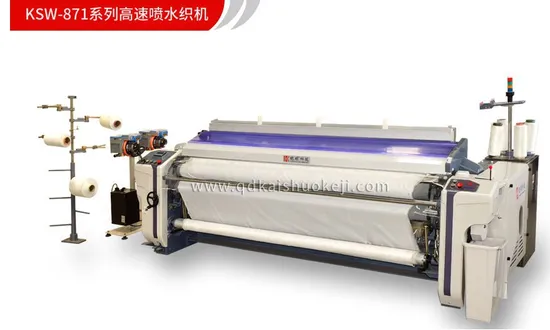

KSW871 High Speed Water Jet Loom is developed from the previous heavy duty model on structure and moving parts, this model has been fully improved and strengthened from let-off, shedding, take-up, driving system and the whole machine's stability, which are with high-speed stable continuous running capacity, products can be adopted into wider range, it is more suitable for weaving thicker and higher density fabrics.

Reed width	170, 190,230,280,340,360,420cm
Effective width	0-500mm (standard)
Weft insertion rate	max 2280 meter/min
Number of nozzles	single nozzle, double-nozzle, three-nozzle, four-nozzle
Speed	max 1200rpm(The actual speed depends on fabric specifications)
Number of heald frame	2,4,6,8 pieces

The main wall panel of the loom adopts high-density reinforced type, gray iron HT200, 340kg, the main beam adopts four reinforced L-shaped steel, the wall thickness is 12mm, sandblasted treatment, the whole frame is more stable, reduce the vibration during high-speed operation, and ensure the high quality and high output of the fabric. At the same time, the large wall panel, middle wall panel, and side cover are tempered to make it not deformed.


After Sales Service
.Spark is committed to offering high-quality spare parts to deliver maximum productivity with minimum downtime.
.Our experienced technicians are skilled in offering technical support and training services to help your weaving looms remain efficient and stable.
.Provide 24-hour service.

FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer holding our own International Trade Department with self import&export rightQ: Are you available for an on-the-spot invitation?A: We warmly welcome our new and old friends to visit our company for detailed negotiation.Meanwhile, we would send our exposition and relative information to promote a face-to-face meeting.Q: Is the price offered changeable?A: We always offer a reasonable price for every customer at the beginning, and the price can be changeable according to the purchasing quantity.Q: How about the quality?A: The main subassembly and raw materials are all supplied by large and skilled companies. The main key parts are researched & developed and machined by our own staff with professional assembly line work and a strict quality test system to meet your high-quality requirement.Q: How's the after-sale service?A: We provide well-trained and professional engineers available to service overseas.Q: What about the delivery time?A: Normally the delivery time is 20 days after getting the down payment. If the order is small and we have some looms in stock, the delivery time is 10-15 days. If our factory is busy with many orders in hand, the delivery time will be negotiable or as per our production plan.

Company Profile
Qingdao Kaishuo Machinery Technology Co., Ltd. is founded in April, 2002. It is located in Wangtai Town, West Coast New District of Qingdao, which is famous for its textile machinery manufacturing. Its geographical position is very superior with convenient sea, land and air transportation. Our company has an area of 27000 square meters, construction area of 14000 square meters. There is 126 staff, including 43 engineers and technicists. We are one of the backbone enterprises of industrial enterprises in Qingdao in recent years with rapid development. Qingdao Kaishuo Machinery Technology Co., Ltd. has grown into a professional manufacturer with good ability of research and development, manufacturing, sales and service in recent years.

---
