Volumetric Cup Measuring granule filling machine for packing Machine

Product Description

Product Description
Product Description

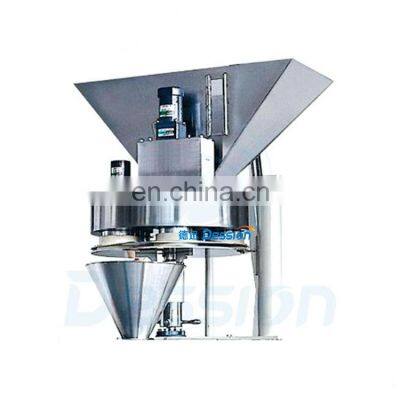

Volumetric Cup Measuring granule filling machine for packing Machine
Volumetrc Cup Filler Main Features:
1. Single cup or 4/6 cups can be selected.
2. Machine frame can be Full stainless steel or Painted mild steel.
3. Cup(s) made by stainless steel or Nylon.
4. Cups filling ranges can be adjusted through hand wheel.
5. Regulation capacity of filling range is 1:2.
Techinical Parameter:

Model	DS-VCF1	DS-VCF4	DS-VCF6
Cups Qty	Single	4 cups	6 cups
Control parts	Air cylinder & Air	Motor & Transducer	Motor & Transducer
Filling range	200-2000ml (By changing cups)	200-1800ml (By changing cups)	200-2000ml (By changing cups)
Filling speed	5- 40 times/min	5-60 times/min	5-60 times/min
Weight	90Kgs	180Kgs	200kgs

Detailed Images:
Match with Granules packing machine:
Cups filling packaging system
Equipment components:1,single bucket conveyor; 2,cup measuring machine;
3,bagger;4,finished product conveyor
Application
This volumetric cup filling machine is very suitable for granule products like peanut, rice, seed, sugar, and so on. It is designed complying with GMP standard. The whole set includes hopper, rotary system(4 cups/6 cups), height adjustable work platform stand and control panel.
Packaging & Shipping
Packaging
1. All our machines will be packed according to export standard, solid fumigation wooden cases or solid non original wood package, all guarantee the safety of machines and avoid damage during transportation.
2. We pack our machines integrally, so no need to install while receiving, connect the electricity and working, very convenient.
Shipping:
Upon receipt of payment , delivery date will be in 20-35 working days,
By Air, by Sea or by Express (DHL,UPS,TNT,EMS etc)
Shipment cost will depend on destination, shipment way and weight of the goods.
Company Information
Dession is a leading manufacturer of Rotary pillow packaging macine, Vertical powder / granules / liquid / Sauce packaging machine, Automatic Feeding line, flowing packing machine and supporting facilities since 2005.
Dession has successfully developed more than 80 kinds of packaging machines and related equipment, widely suitable for food, medicine, chemicals, Industry accessories, hardware and so on.
Our Company and Workshop
Our Certificate
Our Cooperative Client

Our Services
Why Choose Us
• With more than 10 years expertise and experience in date coder machine.
• Embrace flexibility and professionalism.
• No lowest price but always value for money.
• We treat our staffs and suppliers as respectful partners.
• We keep stock of electronic components, touch displays, motors, etc. ready for immediate delivery.
• Provide customized services for special orders according to specifications.
• Long-term customers are happy customers and repeated customers:The goal of our activities is the long-term satisfaction of our customers by the supply of easy-use and reliable equipment.
What are you waitig for ?
Contact me, get the latest design and price !!
