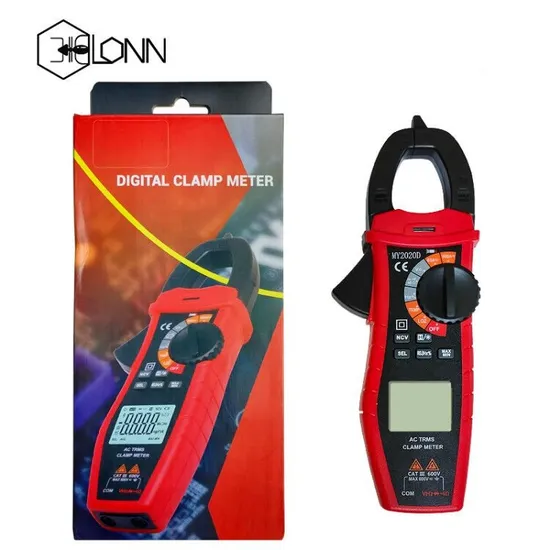

High Procesion Clamp Meter 6000 Counts AC DC Current Voltage Auto Range Clamp Meter

Product Description

High procesion Clamp Meter 6000 counts AC DC current voltage Auto Range Clamp meter
Product Description True-RMS clamp meter: This voltage meter can accurately measure AC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity and Temperature tests. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and household. LowZ & LPF: Low input impedance helps prevent false readings due to ghost voltage. Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformer. To measure the current you need to clamp the meter around one of the wires and not the whole power cord. NCV Defection Function: Non-contact voltage detection effectively check electrical status through measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push.
Specification

Specifications	Range		Accuracy
			LONN2020B	LONN2020D
DC voltage	600mV/6V/60V/600V		±(0.5%+5)
AC voltage	6V/60V/600V		±(0.8%+5)
DC current	60A/600A			±(2.5%+8)
AC Current	60A/600A		±(2.5%+8)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ		±(0.8%+3)
Capacitance	6nF/60nF/600nF/6μF /60μF /600μF /6mF/60mF		±(4.0%+3)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz		±(1.0%+5)
	10MHz		±(3.0%+5)
Duty cycle	1%~99%		±(3.0%+3)
Temperature (C/°F)	-200C~1300°c		±(1.0%+2)
	-328F~2337°F		±(1.0%+4)
Lowz	6v/60V/600v		±(0.8%+5)
Maximum count			6000 count
Automatic/manual mileage			√
Continuity test (sound and light prompt)			√
Diode test			√
Data retention			√
NCV			√
Backlight			√
Flashlight			√
Low voltage indication			√
Full range protection			√
Automatic shut-down			√
True effective value			√
Maximum value minimum value			√
Power supply		3xAAA(1.5V)battery

Xi'an Lonn M&E Equipment Co., Ltd. is located in Xi'an, China where is the hometown of the world's eighth wonder Terracotta Warriors and Horses.
We are a professional manufacturer specializing in testing products for more than 8 years. We have professional research, development ,production and service teams. We highly focus on the quality of products. we have gained really good reputations for good quality from our buyers.

FAQ 1. What's your MOQ?
Our MOQ is 1 piece.

2. What's your warranty?
One year.

3.Is OEM/ODM available?
Yes, both OEM and ODM are available.

4. Can you send the product to my address?
Yes, we have various delivery terms like DHL. UPS, FEDEX and etc...

5. Can I get a lower price for a bulk buy?
Yes, we offer a big discount for a bulk orders.

6. Is it easy to use?
Yes, it's very handy and easy to use.

---
