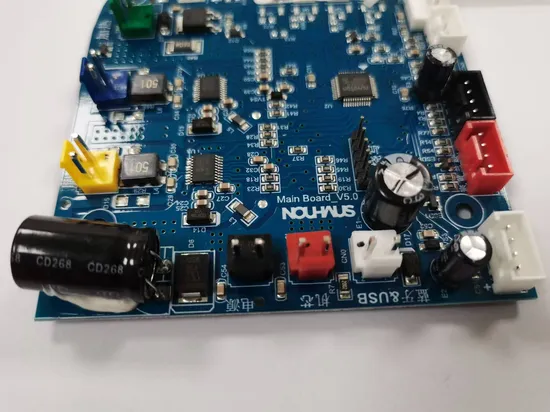

Fr-4 Double-Sided PCB Leisure Chair Main Control Board

US$4.50
10-99 Pieces
US$4.20
100-299 Pieces
US$4.00
300+ Pieces

Basic Info.

Model NO.
803117
Material
Paper Phenolic Copper Foil Substrate
Flame Retardant Properties
V1
Mechanical Rigid
Fexible
Processing Technology
Electrolytic Foil
Base Material
Aluminum
Model
FR-4
Application
Massage Chair, Electric Tool, Motor Signal Control
Thickness
1.6t
Weight
1oz
Color
Blue Oil White Letters
Transport Package
1. Bubble Bag 2. White Paper Box
Specification
266.85*111.5mm
Trademark
OEM
Origin
China
Production Capacity
10000PCS/Month

Product Description

Product Description
APPLICATION Massage pad, electric tool, motor signal control
LQFP48 chip package, supports multiple burning methods, convenient for subsequent upgrades
The red indicator light displays the working status, with multiple control motors and solenoid valves
Product name Main control board
Use Top-loading washing machine
Voltage 110V/260V;50/60HZ
Payment term TT
Our Advantages
Recommended Products
Company Profile
Packaging & Shipping
FAQ
Q1 : Are you a manufactory or trading company?
Answer : We are a factory with over 10 years of history located in Hangzhou, Zhejiang Province.
Q2: Do you provide samples for testing? Answer: Yes, we provide sample testing, but the shipping fee needs to be paid by the customer.
Q3 : What's your MOQ?
Answer : Not less than 500pcs.
Q4 : OEM and ODM are available?
Answer : Yes, we accept customized products.
Q5 : What is our warranty service?
Answer : All products for one year warranty.
Q6 : Do you have any certifications for your products?
Answer : Yes,we have FCC, UL,CE,RoHS,TUV GS,CB,CCC,etc certifications.
Q7 : What's your payment item?
Answer : Our standard payment is T/T in advance, Paypal and Westerm Union.
