US$2.81
2,000-4,999 Pieces
US$2.53
5,000-9,999 Pieces
Basic Info.
Model NO.
JML-J1800INU020
Certification
TUV, RoHS, CCC
Protection
Ocp/Ovp/SCP/Otp
Transport Package
Carton Box
Specification
58.5*38*27.5mm
Production Capacity
1000000pieces/Year
Packaging & Delivery
Package Size
8.50cm * 5.50cm * 8.00cm
Package Gross Weight
0.080kg
Product Description
Product Description
Widely usde in the different industry. Suitable for most of electronics. High quality housing material Small Size: 58.5*38*27.5mm Operating Temperature: -10ºC to 40ºC,Full load, Normal operation Protection: Short Circuit/Over Current/Overshoot High efficiency 100% full load burn-in test Meet UL FCC CE RoHS CB Approved At 25ºC,in full load,the life will more than 20,000 hours Two years warranty Detailed Photos
Products Show:
Products Size:
The general outputs list :
| 5V2.4A | 5V3A | 5V3.6A | 6V2A | 6V2.5A | 6V3A |
| 8V2A | 9V2A | 10V1.2A | 10V1.5A | 10V1.8A | 12V1A |
| 12V1.5A | 15V1A | 15V1.2A | 18V0.5A | 18V1A | 20V0.5A |
| 20V0.9A | 24V0.5A | 30V0.6A | 32V0.5A | | |
DC Cable can customizable:
Different colors:
Product Parameters
Product parameters:

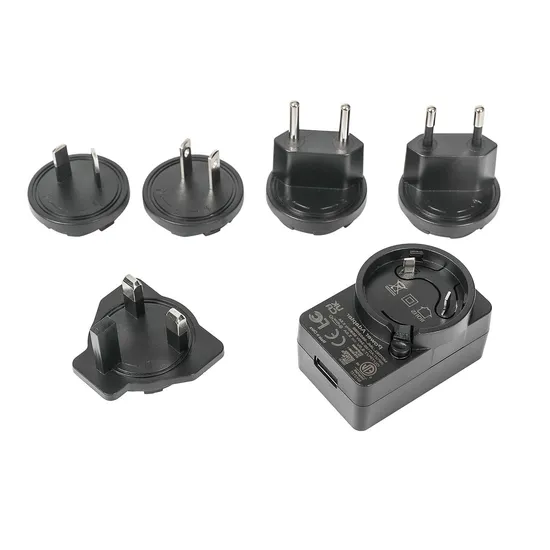

| Product Name | Interchangeable Head Wall Plug 18W USB Power Adapter |
| Input | 100-240V,50-60Hz |
| Output Voltage | 5V-32V |
| Output Current | 0.5A-3.6A |
| Output power | 18W Max |
| Certificate | UL FCC RoHS CE CB |
| Aging Test | 100% |
| Product Size | 58.5*38*27.5mm |
| DC Cable Length | 1.5m(Customizable) |
| Material | ABS&PC |
| Operating Temperature | -10ºC ~40ºC,Full load, Normal operation |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition, Over load |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Warranty | Two years |
Factory Shows
Production Workflow Chart
Production Workflow Chart
Welcome to visit our factory!
Certifications
FAQ
Warm Tips:If you don't find the exact product which you need from our website,feel free to contact us directly,we have a professional technical team and service team,we have ability to customize your products according to your requirement!
>>
