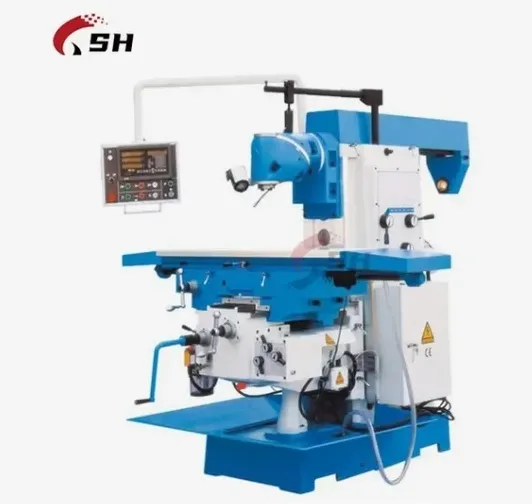

Universal Swivel Head Metal Rotary Head Milling Machine X6432 China High Precision Universal Knee-Type Milling Machine

Product Description

Universal Swivel Head metal rotary head Milling Machine X6432 China High Precision Universal Knee-Type Milling Machine
Product Description
Characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools,that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Main technical specifications:

Specifications	Units	X6432	X6436
Table size	mm	1500x320	1500x360
Table travel	mm	1000/320/400	1000/320/450
T-slot numbers / width /space	mm	3-16-60	3-18-80
Spindle taper		ISO40(V) ISO40(H)	ISO40(V) ISO50(H)
Spindle speed range	rpm	48-1660rpm(V) 40-1300(H)	48-1660rpm(V) 40-1300(H))
Distance between spindle nose and table surface	mm	120-520	150-550
Distance between spindle axis and table surface	mm	0-400	0-400
Range of table feed	mm /min	XY:22-555,Z:electric	XY:22-555,Z:electric
Milling head swivel range	°	360	360
Spindle motor power	kw	3(V)/3(H)	4(H)/4(H)
Feed motor power	kw	1.1	1.1
Weight	kg	2100	2580
Overall dimension	mm	2050x1750x2000	2550x2050x2050

Company Profile



Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
