4*8 Feet 6*9 Feet MDF / HDF / OSB Particle Board Chipboard Production Line

Product Description

4*8 Feet 6*9 Feet MDF / HDF / OSB Particle Board Chipboard Production Line
01:PRODUCT DESCRIPTION
What is Particle board? And what is its function and application?
Particle board be made by wood, wood trunks, straw.
The major advantage of selecting particle board is that it is a cost-effective option against plywood or medium density fiberboards. Laminated particle boards and veneered particle boards provide decorative looks in low price as compared to plywood.
It provides smooth and flat surface for sticking decorative laminates or wood veneer. This particle board is stronger and aesthetically attractive. Thus laminated particle board and veneered particle boards are now used in mass production of office furniture.
Due to its lightweight property, particle board can be easily transported and handled.
Particle board has more screw holding capacity as compared to MDF, so it is widely used to make furniture which can be assembled using screws.
It requires minimal maintenance and is easy to clean.
Particle boards have thermo-acoustic insulation properties, so they are very much useful in speakers and in false ceiling of auditoriums, theaters, etc.
It is an eco-friendly material as it uses wood waste such as wood chips, sawdust, wooden shavings, and bagasse which is residue of sugarcane after the juice is extracted.
02:FULL PRODUCT PARAMETERS

<1> Drum Chipper
Inlet size	240*750mm(H*W)
Blade quantity	2pcs
Knife roll diameter	800mm
Power	132kw
<2> Ring Chipper
Wood strands thickness	0.4-1.0mm
Capacity	5000-8000kg/h
Knife length	449mm
Power	250kw
<3> Triple Pass Drying Machine
Cpacity	10000kg/h
Original moisture	≤80%
End moisture	2%
Power	440kw
<4> Vibrating screen
Screening cloth	2
Screening area	12 m2
Screening capacity	70m3/h
Power	11kw
<5> Gluing
Capacity	500m3 /per day
<6> Forming machine
Surface forming machine	2 sets
Capacity	2 *45m3/h
Core forming machine	1 sets
Capacity	65m3/h
Forming width	1300mm
Forming thickness	30-120mm
<7> Continuous press
Convey speed	10-30m/min
Working height	1250mm
Belt width	1500mm
Power	75kw
<7> Hot press
Pressure	1200 ton
Hot plate size	2650*1680*120mm
Layers	22
Heating medium	Oil
Heating temperature	≤180ºC
Closing time	10s
<8> Sanding machine
Max sanding width	1300mm
Sanding thickness	3-50mm
Sanding belt size	1350*2800mm

For this production line, it can produce 100000m3 one year.
And we can produced as your capacity requires

03:PRODUCT DETAILS
Rotary drum dryer, for drying the wet wood strands/shavings, because their original moisture is high, it is not suitable for making particleboard, therefore, after be dryed by drum dryer, their end moisture will be about 2%, it is suitable and good for making particle board.

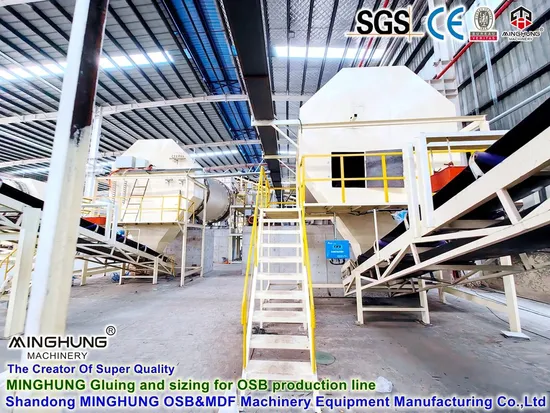

Glue blender, For spreading glue on wood strands, seperately spreading glue on surface strands and core strands
Mat forming machine, for spreading glue on wood strands, seperately spreading glue on surface strands and core strands
Continuous pre press machine, for pre pressing the particle board and make it be forming, also discharge inside air.
Multi opening hot press machine, for pressing the particleboard be in required thickness and be solid and strong.

04:PACKAGING&SHIPPING

05:RELATED OSB MAKING MACHINE
Glue Blander
OSB forming line

06: AFTER SALES SERVICE
<1> Machine Installation:
We can send engineers go to install machine, degue, and teach your workers
<2> Warranty:
1 year
<3> Factory layout:
After machine production start, we can make factory layout for you
<4> If meet problem when operation machine
Contact us at the first time, our engineers will help check and solve quickly

Welcome contact us for more information if you are interested

---
