Cheap Vertical Turret Millling Machine with CE X6325 X6330 X6333

Product Description

Product Description

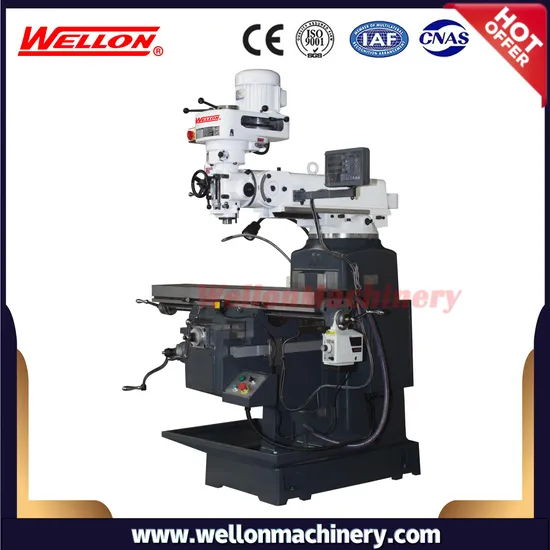

Cheap Vertical Turret Millling Machine X6325 X6330 X6333 Detailed Photos

Product Parameters
1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane,
inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round
surface, rack, gear and spline.
2.Rectangular guide way on Y axis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is
lined with TF wearable material.
3.High speed milling head from Taiwan.
4.Harden the slide way and table surface.
5.Machining the T slot by special tools, make the T slot does not extend out of the table edge, which increase the rigidity and
make the machine have good appearance.
6.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving.
7.XYZ axis screws are made in Taiwan.
8.XY screw with two nut make it easy to adjust space between the screw and nut.
9.The XY screw bracket is designed in one base, have good precision and rigidity.
10. The electro system have been designed according to the CE standard.
Technical parameters:

MODEL	X6325	X6330	X6333
Table size	254*1370	305*1370	330*1370 330*1500
Long travel(mm)	870	870	840 1000
Cross travel(mm)	360	360	360
Vertical travel(mm)	420	380	400
T-slot No.and size(mm)	3*16	3*16	3*16
Ram travel(mm)	470	500	500
Distance from spindle nose to table surface(mm)	0-420	0-350	0-450
Spindle hole taper	R8 ISO30	ISO40	ISO40
Spindle travel(mm)	127	127	127
Spindle speed(r.p.m)	shift grade 16: 50HZ 66-4540, 60HZ 80-5440	shift grade 16: 50HZ 65-4500, 60HZ 80-5440	shift grade 16: 50HZ 66-4540, 60HZ 80-5440
	Optional variable:60-4200	optional: variable:60-3600	optional: variable:60-3600
Auto.quill feed	Three steps: 0.04/0.08/0.15mm/revolution	Three steps: 0.04/0.08/0.15mm/revolution	Three steps: 0.04/0.08/0.15mm/revolution
Spindle motor	2.25kw/3hp	3.75kw/5hp	3.75kw/5hp
Head swivel	90°	90°	90°
Head tilting	45°	45°	45°
Dimension of package	1516*1550*2080	1566*1650*2080	1800*2016*2180
G.W/set	1280	1600	2200

Standard accessories:
Draw bar
Working lamp
Lubricating
Splash guard
Tools and box
Optional accessories:
X axis auto power feed
Y axis auto power feed
Z axis auto power feed
Machine vice 160mm
3-Axis Digital readout
Air draw bar
58 pcs Clamping kits
Slotting head
Spindle protection
Variable spindle speed
5 HP Main motor
Universal Dividing Head F11-160A
Rotary table TSL250

Company information

Packaging & Shipping

FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
