Ylp Good Looking CNC Engraving Machine with Simply Software Operation

Product Description

YLP Good Looking CNC Engraving Machine With Simply Software Operation Product Description

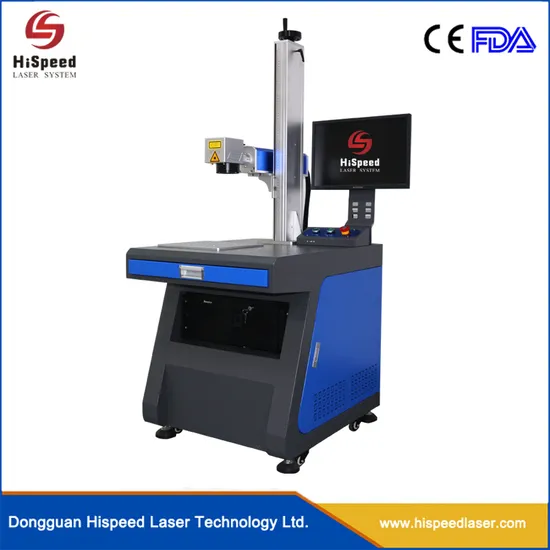

YLP Fiber laser marking machine adopts Chinese most advanced fiber laser source and high-quality galva scanning system.
It can provide stable power output,perfect optical mode,good beam quality and high speed marking,so users can get a perfect effect and high efficiency,which can fulfill massive production.
The advantages of this machine is as following:good looking,easy operation,no need material,no need maintenance,no faulty in long time working.So it can meet the demand of industrial continuous work.
Main Feature Laser power output is stable,and light spot quality is good.Ultrahigh accuracy and fineness,with resolution up to 2540dpi. Quick marking and cutting speed at 2-3 times that of traditional machines. There is no restriction in operation system.It is convenient in operation,with fully closed light paths,so it is stable,reliable and free in maintenance with ultra-long service life up to more than 100,000 hours. No pollution,no noise,and no consumable materials. High elector-optical conversion efficiency . The gross power consumption is 500W, which is a tenth of lamp pumped solid laser marking machine, so can greatly save energy. No need any maintenance, long life, small volume, suit for working in atrocious working conditions. Powerful marking software. It is compatible with file generate from coreldraw, AutoCAD, Photoshop, etc; support PLT,PCX, DXF, BMP format; SHX , TTF font can be used directly ;it also supports automatically coding,printing serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc. Detailed Photos
Operating software
Product Parameters

Model	LS-YLP-20L	LS-YLP-30L
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

Application & Sample
Fibe Laser Marking Machine widely used in mobil power/charger,mobil phone shell/button,electroniccomponent,integrated cicuits,ring,bracelets,cables and wires,electric equipment,mugs,glasses,watches,key,instrument, sanitary ware,stainless steel products car accessores,medical device industries.
Company Profile
Other Products
Why Hispeed Laser?

1.Factory

(1)We are Factory to make laser machines with years of experience.

(2)We are a reliable and experienced supplier. Our machine quality are assurable.

(3)CE and FDA certificate .

2.Warranty & After-Sale Service

(1) All the machines will be fully tested before shipment and free training for operator.

(2) The whole machine guarantee for 2 Years(some models)

(3) 24 hours' technical Support--Email, Telephone,Video Chat Or Romote assistance.

(4) User-friendly English Manuals for the Introduction of our Software/Machine and
CD (Guiding Videos) for Sotware's installing/Operation and
Machine'Using/Maintaining.

3.Easy to use and safety

(1)CD, Video, User Manual to guide you how to install, operate, maintain machine
step by step.

(2)limit switch for safe processing.Emergency stop-turn off machine immediately
After Service Policy
Training & Technical Support
1.Machine manual and Operation video will be provided with machine.
2.Software manual will be provided in softcopy.
3.Initial parameters in the software will be setup so the machine is "ready to use".
4.Online technical support requests will be reponsed within 1 hours during working time,we will guide you by email ,telephone or video chat.
5.Actually this laser marking machine is quite simple on operation,most of our users can start to use the machine and learn well by themselves in short time.
6.Engineer onsite technical support is available,visa ,air tickets,accommodation and local transportation fee will be on client's side.(Appointment needed )
The Difference between Hispeed Laser and Some other Suppliers
he DThe Difference between Hispeed Laser and Some other Suppliersifference between Hispeed Laser and Some other Supplie

Different Aspects	Hispeed Laser	Some Suppliers May
Windows System	Windows 10	Win 7 or XP
Laser Source/Generator	Brand New	Refurbished or Second-hand
Control Card & Software	Genuine original JCZ brand	Copied
Z-axis	Motorized Z-axis	Manuel
Red Light Focus	Two red light spot	none
Warranty	24 months	12 or 18 months
After Service	Response within 3 hours(working time)	response in 3 days or no response

Repair Parts	Send alternative parts immediately, minimized the users' production delay	Users have to send the faulty or broken parts back to the supplier firsty,wait to repaired and then resend to customer,delay production
Business Type	Factory; Real manufacturer (Indicated in the Business License)	Trading company or agent
Certifications	CE,FDA
Trade Capability	With Export License
Sales & Merchandiser Team	Years of professional experience in international business, understand customer's needs well, keep customer updated for every details,tension- free purchsing process	Lack of experience for export custom and process

Packaging & Shipping

FAQ Q1: What's the warranty? A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our FAE will teach you how to remove the broken parts by video. Warranty excluding man-made damage. We are real warranty based series number on the machine, not false or empty promises, any too long time warranty is unreliable, ourt warrannty is effective and enforceable. Q2: What's the package? A2: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic Bag for waterproof. Q3: How to install and run the machine? A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer. You will get a CD of orginal marking software and online video about basic operation. You also will get a software operation manual and you can be a laser marking master after reading and practics. You can send your questions to our online after-serive 24 hours. Q4: How can I know the machine is what exactly I need? A4: Please send us your material photo, marking speed demand, marking size demand and so on, you will get a promptly help from us. Q5: Can you give a discount? A5: No, because quality can't be discounted, but you can choose simple basic version for your application, please contact our sales to know more. Q6: How you can keep your quality. A6: Strict production process with four times checking from metal parts, optical components, installing specification to whole machines' 12 hours burning. Meet CE, FDA, and IEC standards, you will get a unquestionably reliable machine from Hispeed Laser! Your every peny is deserve.
Get Contact with us Now! Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
