US$2,700.00-8,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
YB-6130/YB-6145
Automatic Grade
Semi-Automatic
Model
6130 Diesel Powered
Dimensions
L2300*W1300*H1800mm
Power
25/32/55HP Diesel Engine
Start-up Method
Electric Start
Rotation Speed of Main Machine
2900r/Min
Diameter of Feed Rollers
280mm
Feeding Roller Power
Hydraulic Motor
Diameter of Knife Roller
300mm
Number of Blades
Movable Knife 3 Pieces Static Knife 1 Piece
Cell Specification
12V 105ah
Hydraulic Oil Tank Volume
25L
Transport Package
Packing in Wooden Boxes
Specification
L2300*W1300*H1800mm
Production Capacity
800-2000h/Kg
Product Description
Product Description

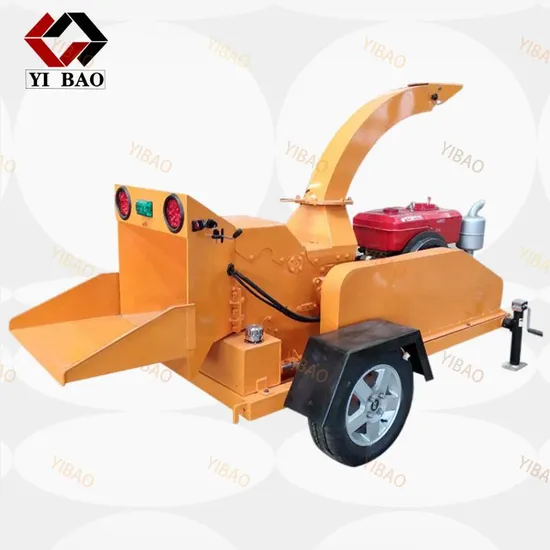

The branch wood chipper is the specially designed and highly efficient wood processing equipment which can process logs,
wood sticks, tree branches and waste wood material into powder and sawdust one time. mobile The size of powder can be adjusted according to different sizes of cutter. Working principle
The feeding system consists of a feeding platform and a hydraulic forced feeding pressure roller, powered by a high flow hydraulic motor,which forces unevenly coarse and fine branches and twigs into the crushing chamber. The cavity is welded as a whole for durability; the knife roller is fixed in the centre of the cavity by a central shaft and powered by a diesel engine or motor through a belt. The blades are evenly attached to the knife roller and do the cutting work with the high speed rotation of the knife roller.
Product Parameters
Model | YB-6130 | YB-6155 |
Diesel Engine | 32P | 80P |
Feed Size | ≤150mm | ≤250mm |
Output | 1.0-1.5t/h | 3-5t/h |
Size | 2400*1200*1400mm | 2600*1400*1400mm |
Finished Product
---------------------------------------------- The size of finished product can be adjusted from 5-20mm -------------------------------------------------
Packaging & Shipping
Our Team
Henan YiBao Machinery was founded in 2018,located in Zhengzhou, Henan Province, with convenient transportation, such as free ways,high-speed railways, airports, etc.
We mainly produce Wood Pellet Mill machine, biomass granulator, sawdust pellet machine, Feed Pellet processing Machine, wood crusher, wood chipper, dryer and other related supporting equipment. We have introduced advanced German production technology and cooperated with many domestic universities in research and development.
Now we have a research and development team of more than 20 persons to provide customers with customized various scale production lines. We have a professional sales team(35 persons). They can design and provide suitable equipment or production lines to meet the customers' actual needs. We also have young salesmen with fluent oral English to serve customers by online videos . In addition, we also have a dedicated after-sales service team(10 persons) to provide technical supports and guidance in 24 hours .
Our products have been approved CE,SGS,ISO9000 etc.And they have been currently exported to Europe and North America ,Southeast Asia, Africa and other regions and countries. The quality and after-sales service makes us a good reputation in the machinery industry.
We had,have,and will have been committed to protecting the environment and improving the ecosystem as our purpose and principle.!!!
Certifications
FAQ
1. Are you a trading company or manufacturer?
--We are a manufacturer. We have own factory and we have specializing in manufacturing wood machinery for 30 years.
2. How about the output about this machine?
--The output differs machine to machine. We have tested our machine for many times, the machine we sold can meet your demand.
3.How about the quality of your product?
-- Our products manufactured strictly according to national and international standard.
-- We have ISO certification.
-- We take a test on every product before delivery.
4.How about price of this product?
-- We do quotation as soon as possible for any customer.
-- Discount can be given according to quantity.
5.If you can be custom-made?
-- We can make products according to customer's requirements.
>>
