Product Details
Product Description
Product Description

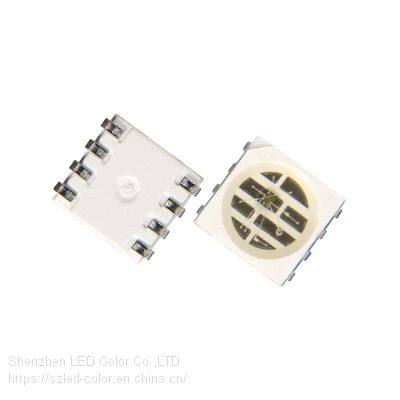

LC8806B is an intelligent externally controlled LED that integrates a control circuit and a light-emitting circuit. Its appearance is the same as a 5050 LED . Each LED is a pixel. The LED contains an intelligent digital interface data latch signal circuit. Power supply voltage regulator circuit, built-in constant current circuit, data regeneration circuit, high precision RC oscillator, output drive adopts patented PWM technology, which effectively guarantees the color consistency of the each pixel.
The data protocol adopts a unipolar return-to-zero code communication method. After the LED is powered on, the DIN terminal receives external signal data, and the data regeneration circuit automatically reshapes and forwards the cascaded output data to ensure that the data is transmitted in series without attenuation and normal transmission .
LC8806B has the advantages of low voltage drive, environmental protection and energy saving, high brightness, large scattering angle, good consistency, long life and so on. The control circuit is integrated inside the LED, which makes the application circuit design easier, less original parts, and small in size. Beautiful, easier to install.
Product Name
| LC8806B RGB LED Chip
|
LED type
| LC8806B SMD LED
|
Emitting Color
| RGB
|
Voltage
| DC12V 24V
|
Gray Scale
| 256
|
Moisture-proof grade
| LEVEL5a
|
Certification:
| CE, EMC, FCC, LVD, RoHS
|
Color
| Wavelength(nm)
| Light intensity(mcd)
| Lumen(LM)
|
Red
| 620-630
| 400-800
| 1.2-2.0
|
Green
| 520-535
| 1000-1800
| 3.0-5.0
|
Blue
| 460-475
| 300-500
| 0.5-1.2
|
Packaging & Shipping
Packaging:
packaging standard is 1000PCS/bag, except for special requirements.
Anti-static bags+Neutral packing carton box
Shipment:
1.Ship Way:Door to Door express or by Air and Sea
2.Shipping port: Shenzhen, Mainland China
3.Leadtime:Sample can be delivered in 3-5days
4. Production lead time for 10000M:7-10days
Our Services
1.Reply you in 24 hours
2.Customized design,ODM/OEM Customized Service are available
3.Professional engineer team provide full support in the whole control system solutions.
4.Experienced sales consultant to cooperate with your work
Warranty:
1.All products we sell are in good quality and have been tested before they are shipped out.
2.We offer 3 years Warranty.
Company Information
Shenzhen LED Color Co., Ltd. is a leading manufacturer of digital LED packaging and LED strip lighting products in China. The company was established in 2012 and is a national high-tech enterprise specializing inthe design and manufacturing.We have a standard factory building of more than 8,000 square meters and more than 100 employees. And set up a professional and precise LED strip dust-free workshop, with 30 LED encapsulation production lines, multiple LED strip automatic production lines, 4 high-speed SMT assemble machines, various advanced instruments and equipments.
With 10 years of R&D and production experience technical team,we have successfully launched the addressable LED Chip, ordinary SMD LED, digital LED strips, ordinary flexible LED strip lights, COB LED strips, LED flex neon, CCT adjustable strip, RGBW led tape, constant voltage led strip lights and so on.We can provide customers wit a complete product line and OEM/ODM,customized production solutions.
FAQ
Why Choose Us ?
1.Factory manufacturer,we can control the production process ,all our products have quality assurance,higher cost-effective and Fast delivery.
2.OEM/ODM Service:we are factory maufacturer and can provideOEM/ODM,customized service to meet customers` different demand.
3.Prefessional in LED:our factory team has 10 years experience in the area of the digital led strip works.
4.Quality Assurance:all our products have to be 100% aged and QC testment before delivery.
5.Payment protection:pay via alibaba 100% payment protection for your covered amount.
>>
