Trade Assurance Roller Laminator Cold Lamination Solventless Laminating Machine

US$110,000.00-400,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZCFMSH1300
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
PA/LLDPE PA/Al/LLDPE Pet/LLDPE Pet/MPET/LLDPE Pet/
Plastic Film Mulching Modes
Hot Laminating
Performance
Waterproof
Advantage
Compare to Comex, Big Frame, China No.1
Transport Package
Wooden Case
Specification
MODEL 1000
Trademark
ZHECHUANG
Origin
China
HS Code
84418010
Production Capacity
50 Sets/Year

Product Description

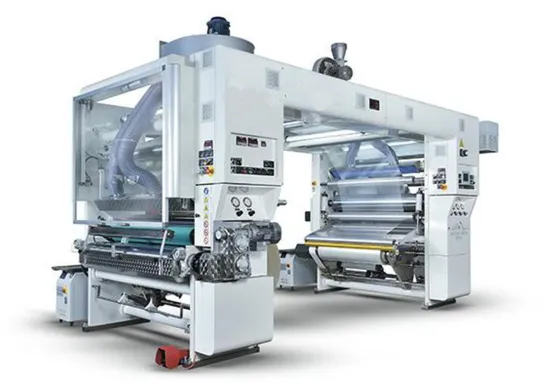

ZCME-SH1300 SINGLE-AXIS SOLVENTLESS COMPOUND MACHINE (BIG S FRAME)

Quick Details
Condition: New
Place of Origin: Shanghai, China (Mainland)
Model Number: 1300MM Solventless Lamination Machine
Voltage: 3P,380V
Power(W): 50KW
Dimension(L*W*H): 5700*2600*2300MM
Weight: 8000KG
Certification: CE
Warranty: 12 months
After-sales Service Provided: Engineers available to service machinery overseas
Material: Film, Paper
Type: Solventless laminating machine
Automation: Yes,computer control
Strongpoint: Environmental protection
Machine Information:
We develops innovative solventless laminators with driven coating system and automatic turret unwind & rewind for high efficiency, consistent tension & minimum waste during roll changes.
Coating Head
.Consists of 5 rollers with 3 independent motor drives for feeding roller,
dosing and for application.
.This driven concept permits consistent and accurate adhesive applications.
Sleeved Transfer Roller
.The rubber sleeve is easily extracted for fast change-overs.
Turret Type - Automatic Splice Unwind & Rewind
.Low waste during roll changes.
Turret Type - Shaftless unwind & Rewind
.Quick Change over.
.Extendable chuck for material min.
.width 650mm without the need of additional accessories.

Turret Type - Shaftless unwind & Rewind
.Quick Change over.
.Extendable chuck for material min.
.width 650mm without the need of additional accessories.


COMPARE TO THE SPANE COMEXI
Machine Parameter:
Main Technical Parameter
ZCME-SH1300
Material width
700~1300 mm
Maximum fit width
1300 mm
Maximum fit wheel width
1400 mm
Glue width range
650-1300mm
First discharge seat diameter
1000 mm
Second discharge seat diameter
1000 mm
Receiving seat diameter
1000 mm
Receiving/discharging paper tube inner diameter
φ75mm (3″) & φ152mm (6″):
φ75mm (3″) &φ152mm (6″):
Mechanical speed
500 m/min)
Operating speed
500 m/min
Operation direction

Voltage
380V, 3phase,50Hz
Maximum weight of material
800KG

Machine Show:
Sample Show:
The sample on the machine
the sample after laminating
the sample after drying on oven room
