10m Platform Height Self Propelled Scissor Lift

Product Description

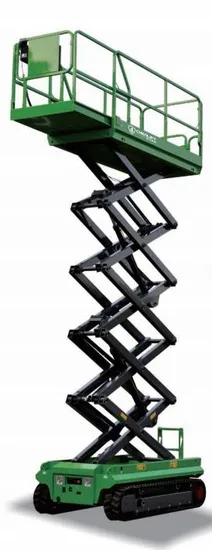

Crawler Self Propelled Scissor Lift Track Type Scissor Lift Platform

Self-Propelled Crawler Scissor Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.
Specification:

Model	MC450	MC600	MC800	MC1000
Load Capacity	200kg	450kg	450kg	320kg
Extension Capacity	100kg	113kg	113kg	113kg
Occupants	1	2	2	2
Maximum Working Height	6.5m	8m	10m	12m
Maximum Platform Height	4.5m	6m	8m	9.75m
Overall Length ( Including ladder)	1410mm	2470mm	2470mm	2470mm
Overall Length ( Excluding ladder)	1340mm	2280mm	2280mm	2280mm
Overall Width	782mm	1390mm	1390mm	1390mm
Overall Height (Guardrail unfolded)	2070mm	2280mm	2400mm	2530mm
Overall Height (Guardrail folded)	1683mm	1745mm	1865mm	1995mm
Platform Size	1340*760mm	2270*1120mm	2270*1120mm	2270*1120mm
Platform Extension Size	500mm	900mm	900mm	900mm
Minimum Turning Radius	0m	0m	0m	0m
Lifting Motor	24V/12Kw	48V/4.5Kw	48V/4.5Kw	48V/4.5Kw
Traveling Motor	2*24V/12Kw	2*48V/4Kw	2*48V/4Kw	2*48V/4Kw
Machine Running Speed	1.7Km/h	2.4Km/h	2.4Km/h	2.4Km/h
Rising/Descending Speed	24/20sec	38/30sec	45/36sec	70/62sec
Batteries	2*12v/120Ah	8*6V/200Ah	8*6V/200Ah	8*6V/200Ah
Charger	24V/15A	48V/25A	48V/25A	48V/25A
Gradeability	30%	30%	30%	30%
Max.Working Slope	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Overall Weight	790kg	2400kg	2550kg	2840kg

Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Certificates
Factory Equipment
Customer Visiting
