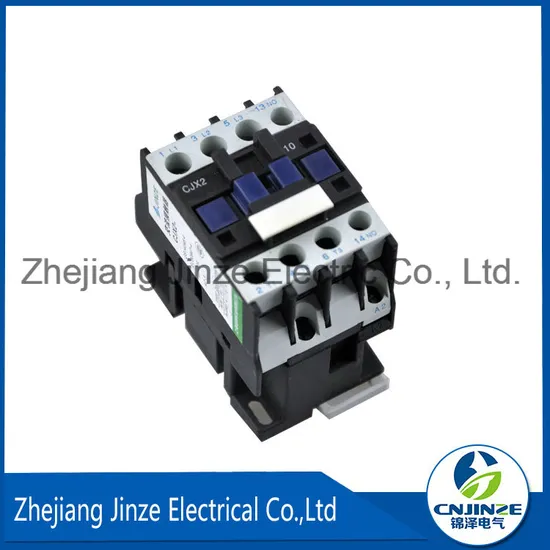

Contactor Cjx2-1210 12A Switches LC1 AC Contactor Voltage 380V 220V 110V Use with Float Switch

Product Description

Product Description
Operating Conditions &Installation method
1,The ambient air temperature:-5ºC~+40ºC; 2,The altitude of the site of installation does not exceed 2000 neters aboce sealvels; 3,The relative humidity of the air in a maximum of not more than 50% at+40ºC, relative humidity, low temperature can be high up to 90%; for example 20 degrees, take special measures due to temperature change should occasionally produce. 4, installation type: III. 5, all directions shall not exceed ±50. 6, The contactor screw installation.
Specifications

Coil rating	1Pole contactors				2 pole contacts
Nominal coil voltage	24	120	208/240	277	24	120	208/240	277
Nominal coil resistance Ohms	18	420	1800	2500	11	237	1000	1600
Maximum pick up voltage	18	88	177	221	18	88	177	221
Maximum drop out voltage	6-15	20-70	40-140	50-165	6-15	20-70	40-140	50-165
Nominal rush Va@50Hz	31	31	31	31	33	33	33	33
Nominal rush Va@60Hz	28	28	28	28	30	30	30	30
Nominal rush Va@50Hz	6	6	6	6	8	8	8	8
Nominal rush Va@60Hz	5	5	5	5	6.5	6.5	6.5	6.5
Maximum coil voltage	30	132	264	300	30	132	132	300

Coil rating	3Pole contactors				4 pole contacts
Nominal coil voltage	24	120	208/240	277	24	120	208/240	277
Nominal coil resistance Ohms	7	180	720	900	6	150	600	750
Maximum pick up voltage	18	88	177	220	18	88	177	220
Maximum drop out voltage	6-15	20-70	40-140	50-165	6-15	20-70	40-140	65-185
Nominal rush Va@50Hz	65	65	65	65	62	62	62	62
Nominal rush Va@60Hz	60	60	60	60	59	59	59	59
Nominal rush Va@50Hz	7.5	7.5	7.5	7.5	9	9	9	9
Nominal rush Va@60Hz	6	6	6	6	7	7	6	7
Maximum coil voltage	30	132	264	300	30	132	264	300
